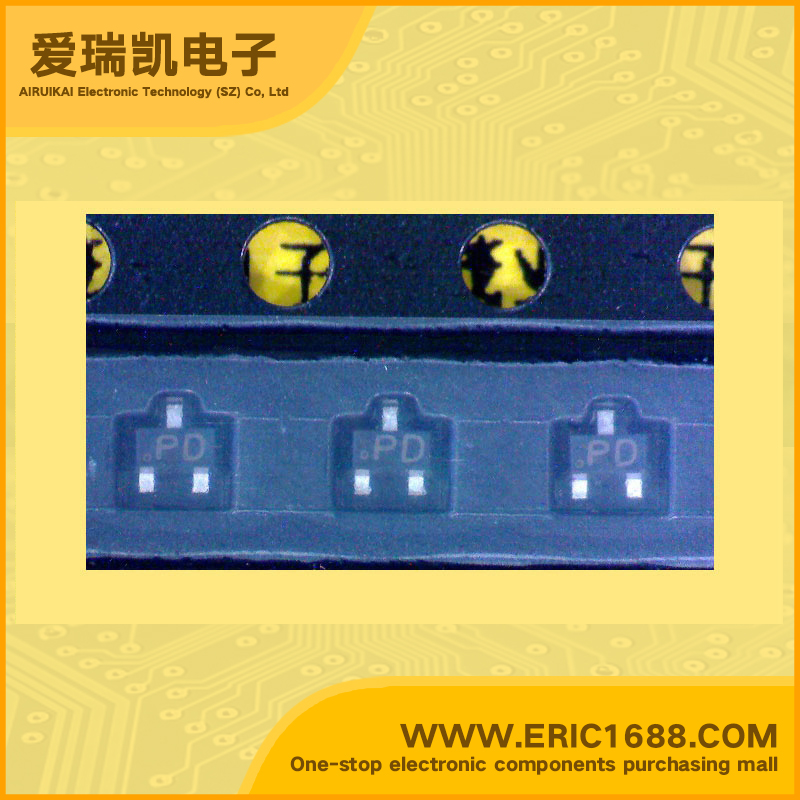

KRA304E PNP Bipolar Digital Transistor (BRT) -50V -100mA/-0.1A 0.1W/100mW SOT-523/ESM marking PD switch inverter interface driver circuit

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)-50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)-50V
集电极连续输出电流IC Collector Current(IC)-100mA/-0.1A
基极输入电阻R1 Input Resistance(R1)47KΩ/Ohm
基极-发射极输入电阻R2 Base-Emitter Resistance(R2)47KΩ/Ohm
电阻比(R1/R2) Resistance Ratio1
直流电流增益hFE DC Current Gain(hFE)
截止频率fT Transtion Frequency(fT)200MHz
耗散功率Pc Power Dissipation0.1W/100mW
Description & ApplicationsFEATURES •with built-in bias RESISTOR •simplify circuit design •reduce a quantity of parts and manufacturing process •high packing density
描述与应用特点 •内置偏置电阻 •简化电路设计 •减少了部件数量和制造工艺 •高堆积密度
