KRA755E PNP+PNP Complex Bipolar Digital Transistor -50V -100mA 0.2W HEF=80~200 R1=2.2KΩ R2=47KΩ SOT-563/TES6 marking PE switching inverting interface driver circuit

Model：KRA755E

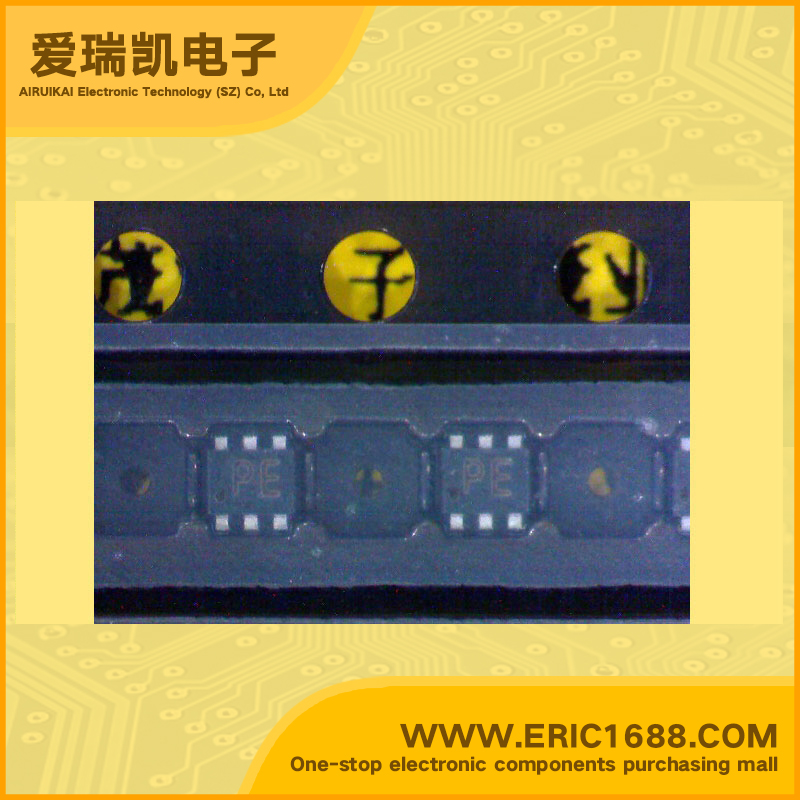

Mark / screen / code / typing：PE
Manufacturer：
Date Code：05+
Package：SOT-563/TES6
Standard Package：4000
Min Order：10

Hot selling goods

Product description

V(BR) CBO Collector-Base Voltage	-50V
V(BR) CEO Collector-Emitter Voltage	-50V
Collector Current(IC)	-100MA/-0.1A
Input Resistance(R1)	2.2KΩ
Base-Emitter Resistance(R2)	47KΩ
Base-Emitter Input Resistance Ratio (R1/R2)	0.0468
DC Current Gain(hFE)	80~200
Transtion Frequency(fT)	200MHZ
Power Dissipation （Pd）	0.2W
Description & Applications	SWITCHING APPLICATION. INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION. FEATURES With Built-in Bias Resistors. Simplify Circuit Design. Reduce a Quantity of Parts and Manufacturing Process. High Packing Density.
Technical Documentation Download	Read Online
