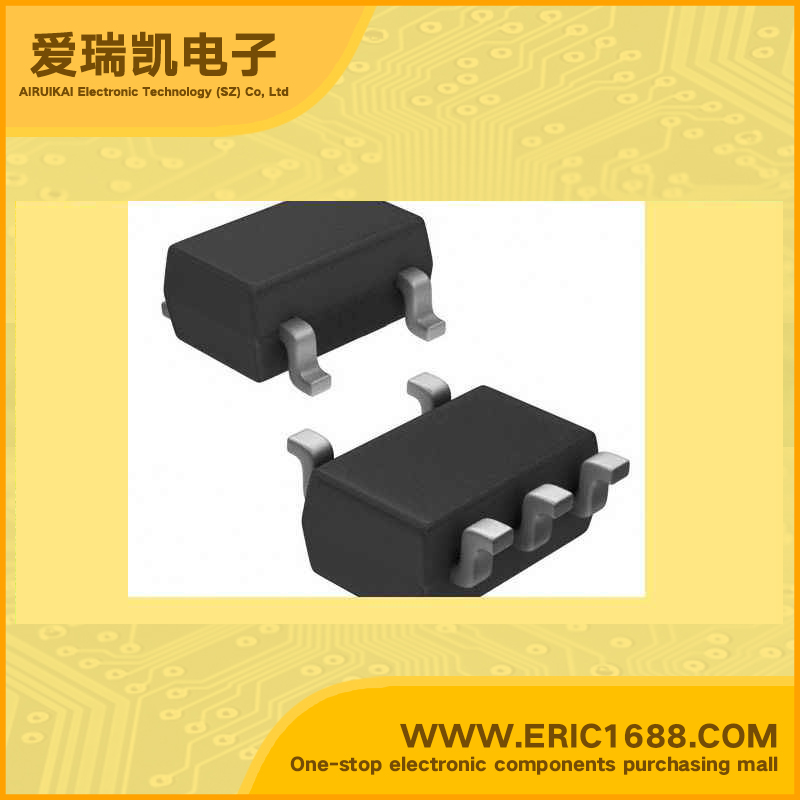

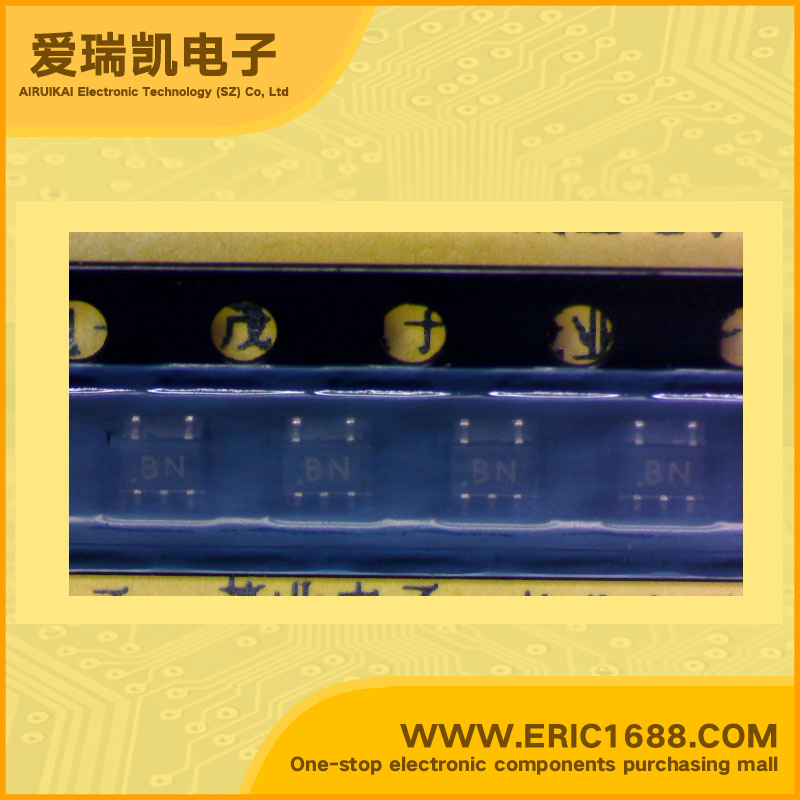

KRX104U NPN+PNP Complex Bipolar Digital Transistor 50V/-50V 100mA/-100mA 200mW/0.2W SOT-353/usv/SC70-5 marking BN switching inverting interface driver circuit

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)50V/-50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)50V/-50V
集电极连续输出电流IC Collector Current(IC)100mA/-100mA
Q1基极输入电阻R1 Input Resistance(R1)47KΩ/Ohm
Q1基极-发射极输入电阻R2 Base-Emitter Resistance(R2)47KΩ/Ohm
Q1电阻比(R1/R2) Q1 Resistance Ratio1
Q2基极输入电阻R1 Input Resistance(R1)4.7KΩ/Ohm
Q2基极-发射极输入电阻R2 Base-Emitter Resistance(R2)10KΩ/Ohm
Q2电阻比(R1/R2) Q2 Resistance Ratio0.47
直流电流增益hFE DC Current Gain(hFE)
截止频率fT Transtion Frequency(fT)200MHz
耗散功率Pc Power Dissipation200mW/0.2W
Description & ApplicationsFeatures •EPITAXIAL PLANAR PNP TRANSISTOR •INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION. •Including two devices in TESV.(Thin Extereme Super mini type with 5 pin.) •With Built-in Bias Resistors. •Simplify Circuit Design. •Reduce a Quantity of Parts and Manufacturing Process.
描述与应用特点 •外延平面PNP晶体管 •接口电路和驱动器电路中的应用。 •包括两个设备TESV(薄Extereme超级迷你型5针) •内置偏置电阻。 •简化电路设计。 •减少了部件数量和制造工艺
