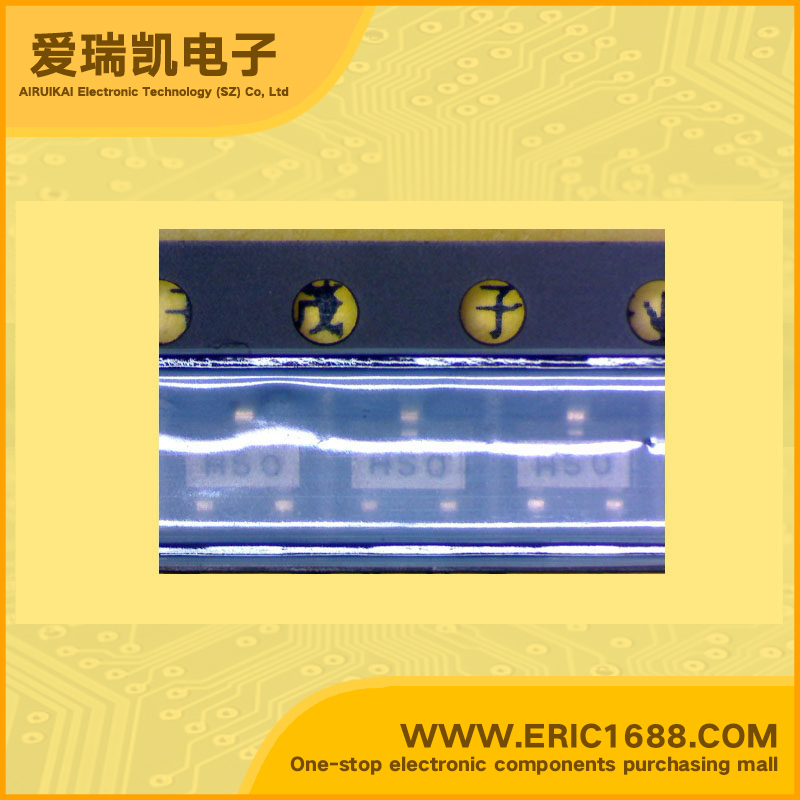

KSC2223-O NPN Transistors(BJT) 30V 20mA 600MHz 60~120 300mV/0.3V SOT-23/SC-59 marking H50 high frequency amplifier

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
30V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
20V
集电极连续输出电流IC
Collector Current(IC)
20mA
截止频率fT
Transtion Frequency(fT)
600MHz
直流电流增益hFE
DC Current Gain(hFE)
60~120
管压降VCE(sat)
Collector-Emitter Saturation Voltage
300mV/0.3V
耗散功率Pc
Power Dissipation
150mW/0.15W
Description & ApplicationsHigh Frequency Amplifier Very small size to assure good space factor in Hybrid IC applications fT=600MHz (TYP) at IC=1mA Cob=1pF (TYP) at VCB=6V NF=3dB (TYP) at f=100MHz
描述与应用高频率放大器 非常小的尺寸,以保证良好的空间因素在混合集成电路应用
