KTN2369S NPN Transistors(BJT) 40V 500mA/0.5A 40~120 250mV/0.25V SOT-23/SC-59 marking Z1 fast switch

Model：KTN2369S

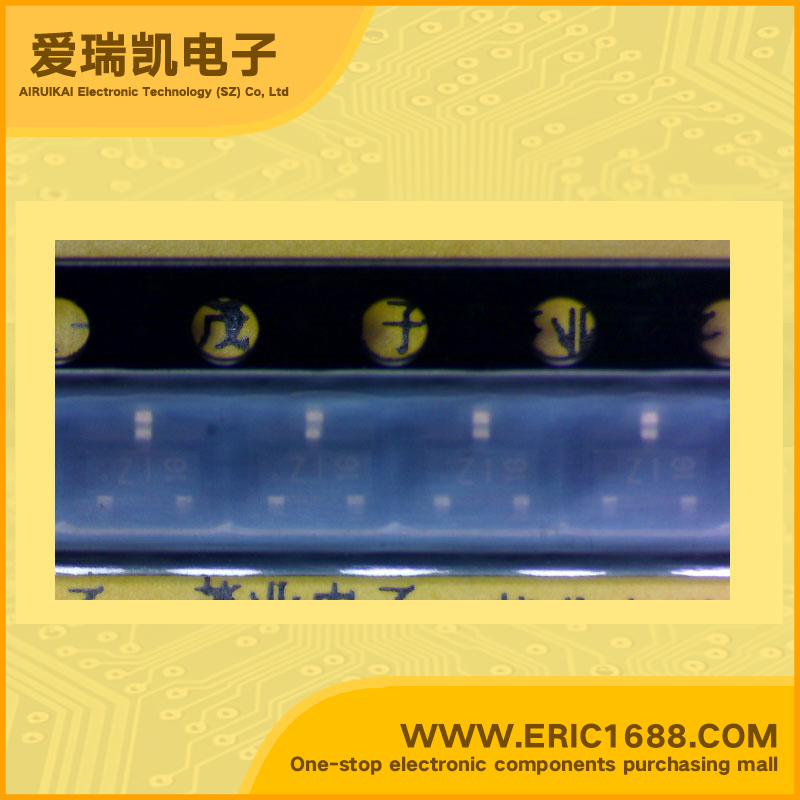

Mark / screen / code / typing：Z1
Manufacturer：
Date Code：05+
Package：SOT-23/SC-59
Standard Package：3000
Min Order：10

Hot selling goods

Product description

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)	40V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)	15V
集电极连续输出电流IC Collector Current(IC)	500mA/0.5A
截止频率fT Transtion Frequency(fT)
直流电流增益hFE DC Current Gain(hFE)	40~120
管压降VCE（sat） Collector-Emitter Saturation Voltage	250mV/0.25V
耗散功率Pc Power Dissipation
Description & Applications	HIGH SPEED SWITCHING APPLICATION. excellent high frequency characteristics excellent switch characteristics
描述与应用	高速开关应用。优异的高频特性优良的开关特性

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
KTX101E-GR-RTK NPN+PNP Complex Bipolar Transistor 60V/-60V 150mA/-150mA HEF=200~400 SOT-563/TES6 marking B6 switch and digital circuit application	KTX101E-GR-RTK Mark：B6 Package：SOT-563/TES6	-	Batch number：05+	3300 Min Order:10
KTX101E-Y NPN+PNP Complex Bipolar Transistor 60V/-60V 150mA/-150mA HEF=120~240 SOT-563/TES6 marking B4 switch and digital circuit application	KTX101E-Y Mark：B4 Package：SOT-563/TES6	-	Batch number：04NOPB 05+NOPB94K+2K	104800 Min Order:10
KTX101U-GR-RTK NPN+PNP Complex Bipolar Transistor 60V/-60V 150mA/-150mA 120~400 SOT-363/US6 marking B6 switch and digital circuit application	KTX101U-GR-RTK Mark：B6 Package：SOT-363/US6	-	Batch number：05+ 05+NOPB4500	16500 Min Order:10
KTX101U-Y-RTK NPN+PNP Complex Bipolar Transistor 60V/-60V 150mA/-150mA 120~400 SOT-363/US6 marking B4 switch and digital circuit application	KTX101U-Y-RTK Mark：B4 Package：SOT-363/US6	-	Batch number：04+ 05+NOPB13400	22200 Min Order:10
KTX213U-RTK PNP+NPN+R SOT363 MARKING BH	KTX213U-RTK Mark：BH Package：SOT-363	-	Batch number：1R NOPB 04+NOPB200	500 Min Order:10
KTX401U-GR NPN+DIODES Complex Bipolar Transistor SOT-353/USV marking CE switch and digital circuit application	KTX401U-GR Mark：CE Package：SOT-353/USV	-	Batch number：05+NOPB	2800 Min Order:10
Temperature Sensor KTY13-6 SOT-23 marking T	KTY13-6 Mark：T Package：SOT-23	-	Batch number：05+	0 Min Order:10
