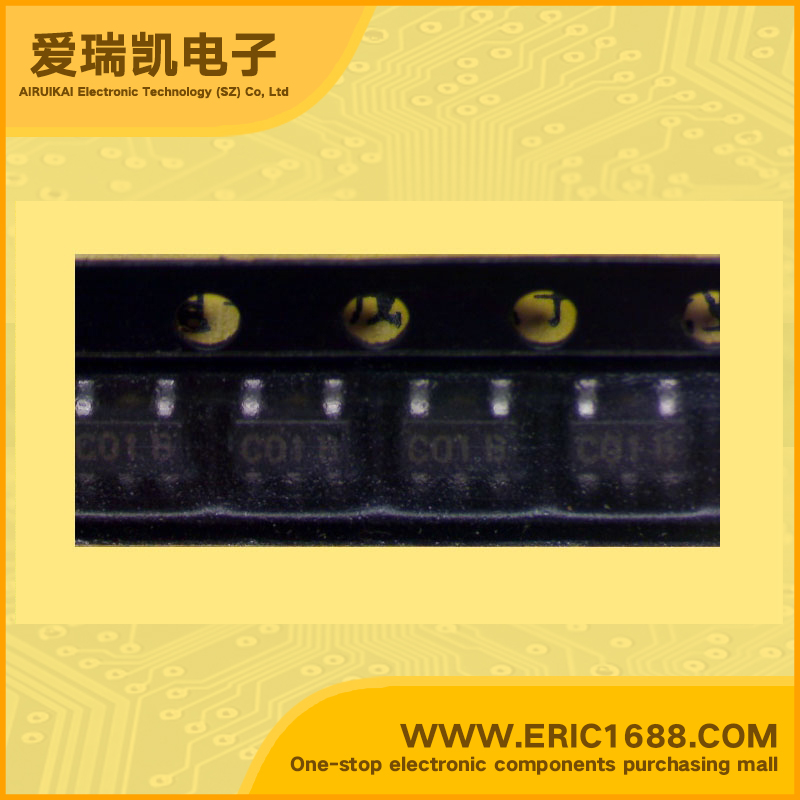

comparator LMC7221BIM5 SOT-153/SOT23-5/SC-74A marking C01

Hot selling goods

Product description
类型
Type
通用 General Purpose
元件数
Number of Elements
1
输出类型
Output Type
开路漏极 Open Drain
电源电压,单/双 (±)
Voltage - Supply, Single/Dual (±)
2.7 V ~ 15 V,±1.35 V ~ 7.5 V
输入失调电压(最大值)
Voltage - Input Offset (Max)
15mV
输入偏置电流(最大值)
Current - Input Bias (Max)
0.04pA
输出电流(典型值)
Current - Output (Typ)
30mA
静态电流(最大值)
Current - Quiescent (Max)
14µA
CMRR,PSRR(典型值)
CMRR, PSRR (Typ)
75dB CMRR,80dB PSRR
传播延迟(最大值)
Propagation Delay (Max)
10us
滞后
Hysteresis
Description & ApplicationsFEATURES • Tiny CMOS Comparator with Rail-to-Rail Input and Push-Pull Output • Tiny SOT 23-5 package saves space • Package is less than 1.43 mm thick • Guaranteed specs at 2.7V, 5V, 15V supplies • Typical supply current 7 µA at 5V • Response time of 4 µs at 5V • Push-pull output • Input common-mode range beyond V− and V+ • Low input current Applications • Battery Powered Products • Notebooks and PDAs • PCMCIA cards • Mobile Communications • Alarm and Security circuits • Direct Sensor Interface • Replaces amplifiers used as comparators with better performance and lower current
描述与应用特点 •微型CMOS比较器具有轨至轨输入和推挽输出 •微型SOT23-5封装节省空间 •包装厚度小于1.43毫米 •保证在2.7V,5V,15V​​电源规格 •典型电源电流7μA在5V •在5V响应时间为4μs •推挽输出 •输入共模范围超出V和V+ •低输入电流 应用 •电池供电产品 •笔记本电脑和PDA •PCMCIA卡 •移动通信 •报警和安全电路 •直接传感器接口 •替换放大器用作比较器具有更好的性能和更低的电流
