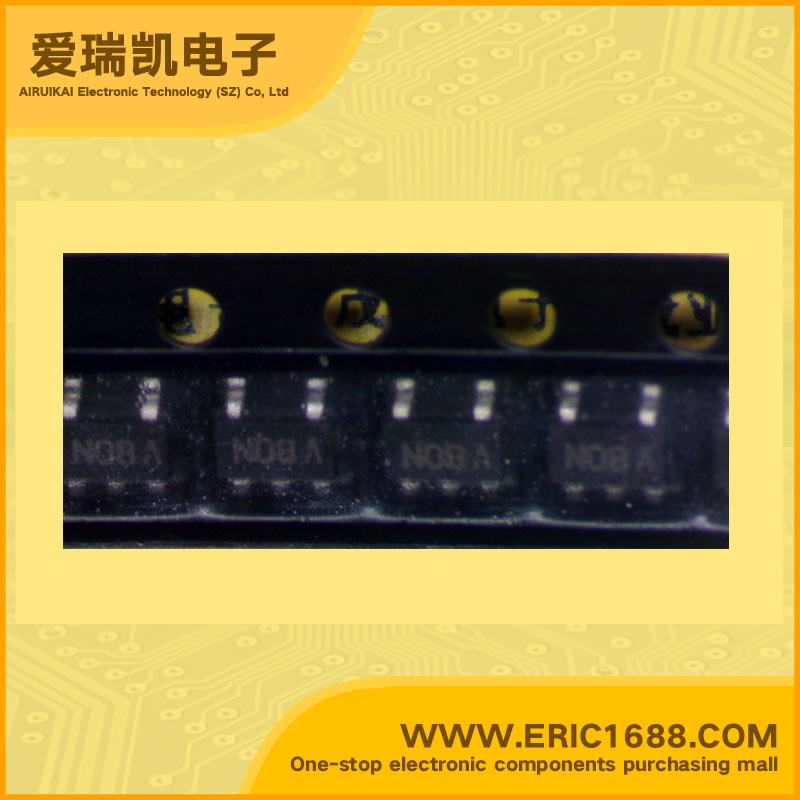

LMV431AIM5X Voltage Reference Power Management IC 1.24V~30V SOT-153/SOT23-5 marking N08 Shunt Regulator

Hot selling goods

Product description
参考类型
Reference Type
旁路,可调节,精度 Shunt, Adjustable, Precision
输出电压Vo
Voltage - Output
1.24V~30V
误差
Tolerance
±1%
温度系数
Temperature Coefficient
输入电压
Voltage - Input
1.24V~30V
阴极电流
Current - Cathode
80µA
输出电流IOUT
Current - Output
15mA
Description & ApplicationsFEATURES • Low-Voltage (1.24V) Adjustable Precision Shunt Regulators • Low Voltage Operation/Wide Adjust Range (1.24V/30V) • 0.5% Initial Tolerance (LMV431B) • Temperature Compensated for Industrial Temperature Range (39 PPM/˚C for the LMV431AI) • Low Operation Current (55µA) • Low Output Impedance (0.25Ω) • Fast Turn-On Response • Low Cost Applications • Shunt Regulator • Series Regulator • Current Source or Sink • Voltage Monitor • Error Amplifier • 3V Off-Line Switching Regulator • Low Dropout N-Channel Series Regulator
描述与应用特点 •低电压(1.24V)可调精密并联稳压器 •低工作电压/宽调节范围(1.24V/30V) •0.5%的初始容差(LMV431B) •温度补偿为工业级温度范围(39 PPM /˚C LMV431AI) •低工作电流(55μA) •低输出阻抗(0.25Ω) •快速导通响应 •低成本 应用 •并联稳压器 •系列稳压器 •电流源或接收 •电压监视器 •误差放大器 •3V离线式开关稳压器 •低压差N-通道系列稳压器
