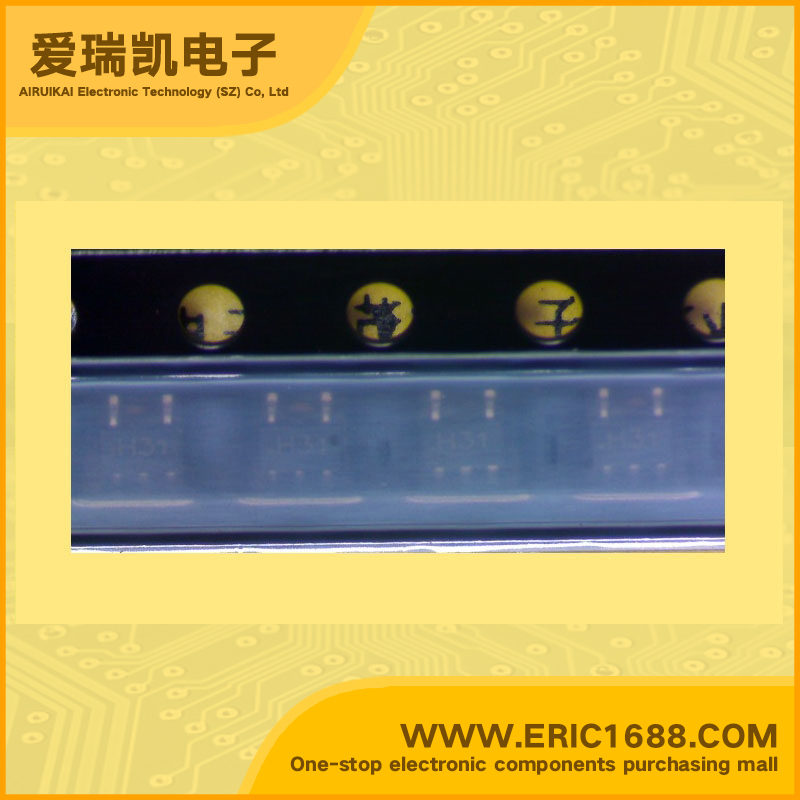

Integrated Circuit(IC) NOR gate MC74HC1G02DFT2 SOT-353/SC-88A/SC70-5 marking H3

Hot selling goods

Product description
逻辑类型
Logic Type
或非门 NOR Gate
电路数
Number of Circuits
1
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
2V~6V
静态电流Iq
Current - Quiescent (Max)
1uA
输出高,低电平电流
Current - Output High, Low
-2.6mA,2.6mA
低逻辑电平
Logic Level - Low
0.5V~1.8V
高逻辑电平
Logic Level - High
1.5V~4.2V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
7.5ns @ 4.5V,50pF
Description & ApplicationsSingle 2-Input NOR Gate;Features High Speed: tPD = 7 ns (Typ) @ VCC = 5 V Low Power Dissipation: ICC = 1 uA (Max) at TA = 25 C High Noise Immunity Balanced Propagation Delays (tPLH = tPHL) Symmetrical Output Impedance (IOH = IOL = 2 mA) Chip Complexity: FET = 40 Pb−Free Packages are Available
描述与应用单路2输入或非门;特性 高速:TPD =7纳秒(典型值)@ VCC = 5 V 低功耗:ICC=1 UA TA=25°C(最大值) 高抗干扰 平衡传输延迟(TPLH TPHL) 对称的输出阻抗(IOH= IOL= 2毫安) 芯片的复杂性:FET= 40 无铅封装
