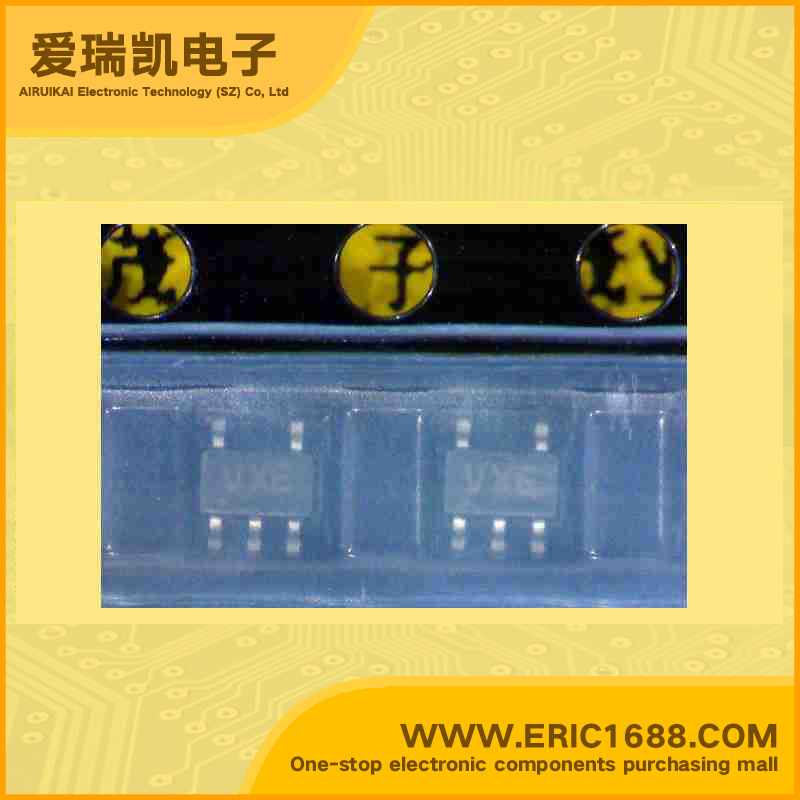

Integrated Circuit(IC) AND gate MC74VHC1G09DFT2 SOT-353/SC-88A/SC70-5 marking VXE

Hot selling goods

Product description
逻辑类型
Logic Type
与门 AND Gate
电路数
Number of Circuits
1
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
2V~5.5V
静态电流Iq
Current - Quiescent (Max)
1uA
输出高,低电平电流
Current - Output High, Low
-8mA,8mA
低逻辑电平
Logic Level - Low
0.5V~1.65V
高逻辑电平
Logic Level - High
1.5V~3.85V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
7.9ns @ 4.5V~5.5V,50pF
Description & Applications2-Input AND Gate with Open Drain Output ;Features High Speed: tPD = 4.3 ns (Typ) @VCC = 5.0 V Low Internal Power Dissipation: ICC = 1 uA (Max) @TA = 25°C Power Down Protection Provided on Inputs Pin and Function Compatible with Other Standard Logic Families Chip Complexity: FETs = 62; Equivalent Gates = 16
描述与应用2输入与门 开漏输出;特性 高速:TPD =4.3 ns(典型值)@ VCC=5.0 V 内部功耗:ICC=1uA(最大值)@ TA= 25°C 掉电保护的输入端 引脚和功能兼容与其他标准逻辑系列 芯片的复杂度:晶体管数=62;等效门= 16
