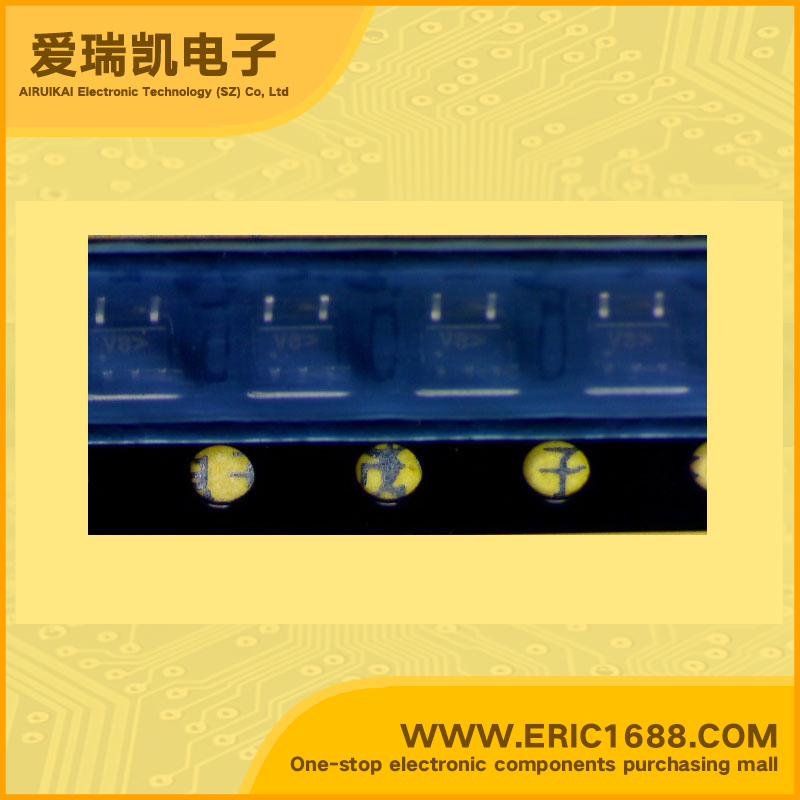

Integrated Circuit(IC) XOR gate MC74VHC1G86DFT1 SOT-353/SC-88A/SC70-5 marking V8

Hot selling goods

Product description
逻辑类型
Logic Type
异或门 XOR Gate
电路数
Number of Circuits
1
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
2V~5.5V
静态电流Iq
Current - Quiescent (Max)
1uA
输出高,低电平电流
Current - Output High, Low
-8mA,8mA
低逻辑电平
Logic Level - Low
0.5V~1.65V
高逻辑电平
Logic Level - High
1.5V~3.85V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
8.8ns @ 5V,50pF
Description & ApplicationsSingle 2−Input Exclusive OR Gate ;Features High Speed: tPD = 3.5 ns (Typ) @VCC = 5 V Low Power Dissipation: ICC = 1uA (Max) @TA = 25°C Power Down Protection Provided on Inputs Balanced Propagation Delays Pin and Function Compatible with Other Standard Logic Families Chip Complexity: FETs = 54 Pb−Free Packages are Available
描述与应用单路2输入 异或门;特性 高速:TPD =3.5纳秒(典型值)@ VCC = 5 V 低功耗:ICC=1uA(最大)@ TA= 25°C 掉电保护的输入端 平衡传输延时 引脚和功能兼容与其他标准逻辑系列 芯片的复杂度:晶体管数= 54 提供无铅封装
