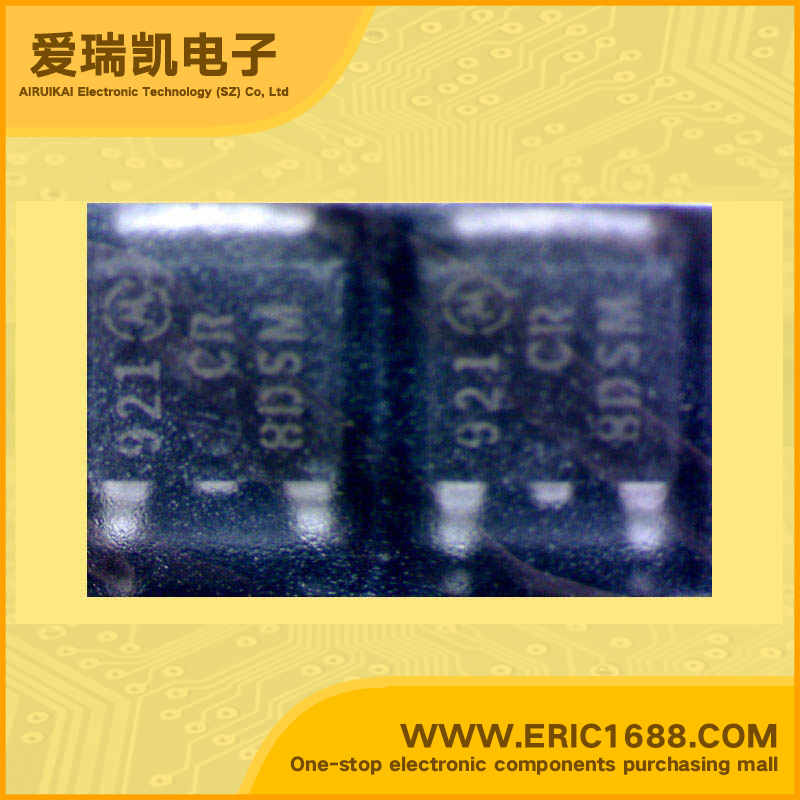

Thyristor,SCR MCR8DSMT4G 0.65V 1mA SOT-252 marking 8DSM
| 反向重复峰值电压VRRM/断态重复峰值电压VDRM Repetitive peak reverse voltage/Repetitive peak off-state voltage | 600V |
| 通态平均电流IT(AV) Average on-state current | 5.1A |
| 通态最大电流IT(RMS) RMS on-state current | 8.0A |
| 栅极触发电压VGT Gate trigger voltage | 0.65V |
| 栅极触发电流IGT Gate trigger current | 12μA |
| 保持电流IH Holding current | 1mA |
| 峰值通态电压VTM On-state voltage | 1.4V |
| 重复峰值断态电流IDRM Repetitive peak off-state current | 10μA |
| 浪涌电流ITSM(50Hz、60Hz) Current - Non Rep. Surge 50, 60Hz (Itsm) | 90A |
| Description & Applications | Sensitive Gate Silicon Controlled Rectifiers Small Size Passivated Die for Reliability and Uniformity Low Level Triggering and Holding Characteristics Available in Two Package Styles Surface Mount Lead Form − Case 369C Miniature Plastic Package − Straight Leads − Case 369 Pb−Free Packages are Available |
| 描述与应用 | 敏感栅 可控硅整流器 小型 钝化模具的可靠性和一致性 低级别触发和控股特点 提供两种封装类型 表面贴装引线形式 - 外壳369C 微型塑料包装 - 直导线 - 外壳369 提供无铅封装 |
