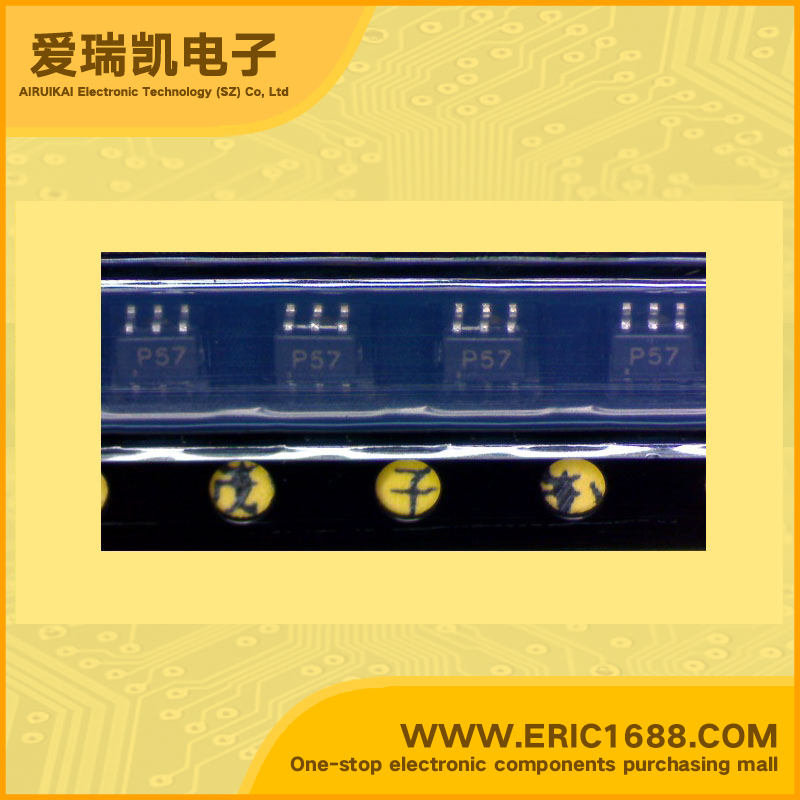

MIC94063BC6TR MOSFET/Bridge Driver PMIC non-inverting 1.7V ~ 5.5V 6A SOT-363 marking P57 Load switch in portable applications

Hot selling goods

Product description
驱动器类型(配置/类型)
Type/Configuration
高端 High Side
驱动器数量(配置数)
Number of Configurations
输入类型
Input Type
非反相 Non-Inverting
导通电阻
On-State Resistance
77mΩ
峰值输出电流
Current - Peak
6A
输出端数量
Number of Outputs
1
电源电压
Voltage - Supply
1.7V ~ 5.5V
Description & ApplicationsFEATURES • High Side Power Switches • 1.7V to 5.5V input voltage range • 2A continuous operating current • 77mΩ (typ) RON • Built-in level shift for control logic; can be operated by 1.5V logic. • Low 2µA quiescent current • Soft-Start: MIC94062-63 • Micro-power shutdown <1µA • Load discharge circuit: MIC94061, MIC94063 • Space saving 1.2mm x 1.6mm thin MLF™ package Applications • Load switch in portable applications: - Cellular phones - PDAs - MP3 players - Digital Cameras - Portable instrumentation • Battery switch-over circuits • Level translators
描述与应用特点 •高侧电源开关 •1.7V至5.5V的输入电压范围 •2A连续工作电流 •77mΩ(典型值)RON •内置的控制逻辑电平移位;可以操作由1.5V逻辑。 •低静态电流2μA •软启动:MIC94062-63 •微功率停机时<1μA •负载放电电路:MIC94061,MIC94063 •节省空间1.2毫米×1.6mm的薄MLF™封装 应用 •在便携式应用中的负载开关: - 移动电话 - 掌上电脑 - MP3播放器 - 数码相机 - 便携式仪器仪表 •电池切换电路 •电平转换器
