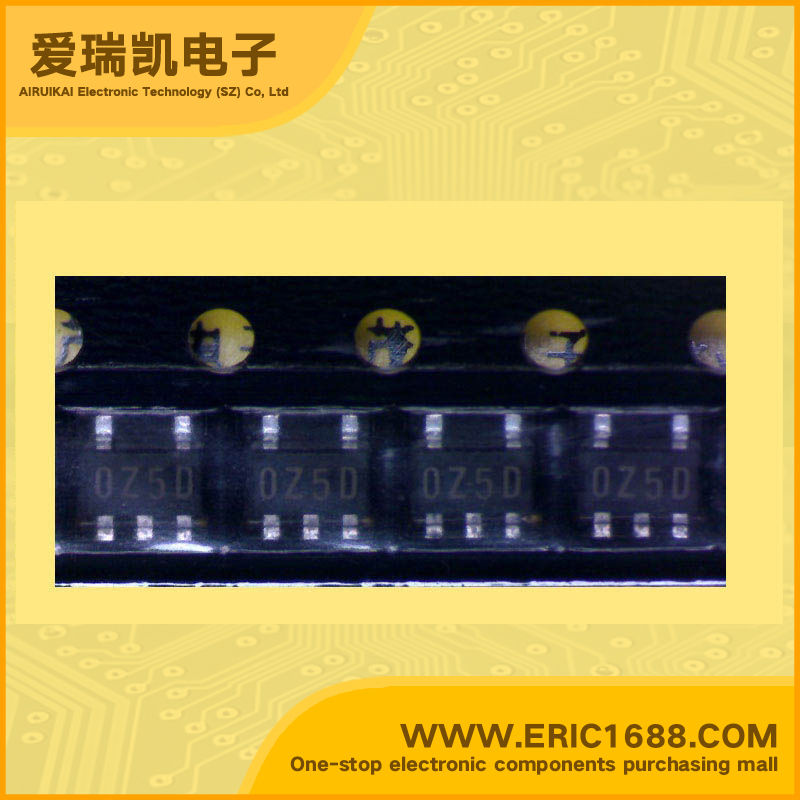

MM1270ZNR LDO Voltage Regulator 3.3V 50mV SOT-153/SOT-25A/SOT23-5 marking OZ Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 10V |
| 输出电压VOUT Voltage - Output | 3.3V |
| 输出电流Io Current - Output | 60mA |
| 最大压降VDO Voltage - Dropout | 50mV |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | 150mW/0.15W |
| Description & Applications | Low-Output Voltage Low-Saturation Three-Pin Regulator ;• Input voltage 10V max. •Input/output voltage differential 0.05V typ. •Input current for no load 15µA typ. •Output voltage 1.08V, 1.03V typ. •Current limiter circuit included |
| 描述与应用 | 低输出电压低饱和度的三针调节器;•最大输入电压10V。 •输入/输出电压差0.05V（典型值） •输入电流无负载15μA（典型值） •输出电压1.08V，1.03V（典型值） •包括电流限幅电路 |
