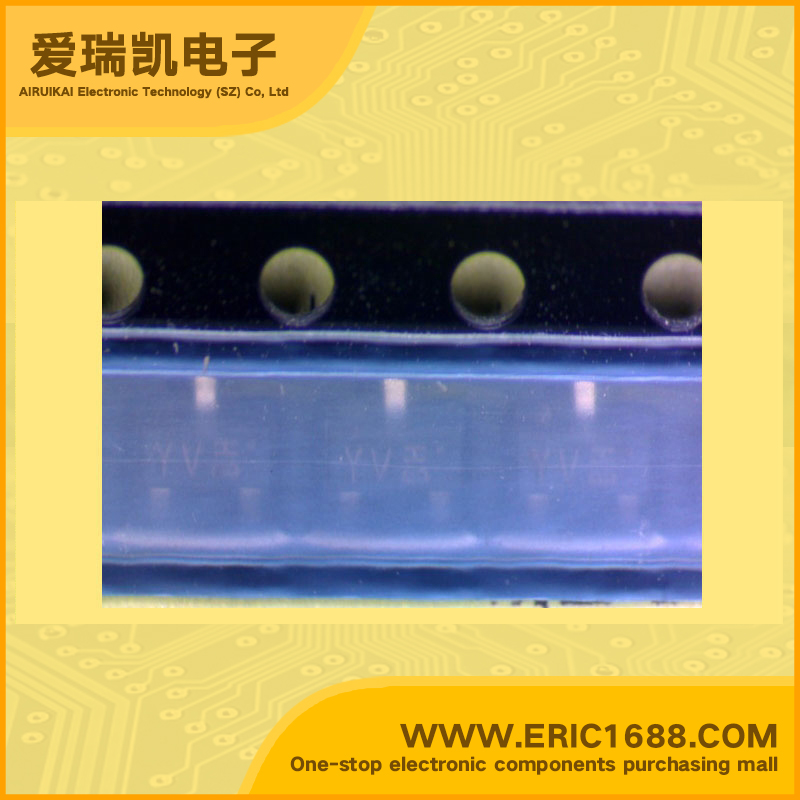

MMBTA92 PNP transistors（BJT） -300V -500mA/-0.5A 50MHz 40 -500mV/-0.5V SOT-23/SC-59 marking A92 video amplifier/telephone interface
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -300V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | −300V |
| 集电极连续输出电流IC Collector Current(IC) | −500mA/-0.5A |
| 截止频率fT Transtion Frequency(fT) | 50MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 40 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | −500mV/-0.5V |
| 耗散功率Pc PoWer Dissipation | 350mW/0.35W |
| Description & Applications | PNP epitaxial planar transistor High voltage application Telephone application |
| 描述与应用 | PNP外延平面晶体管 高电压应用 电话应用 |
