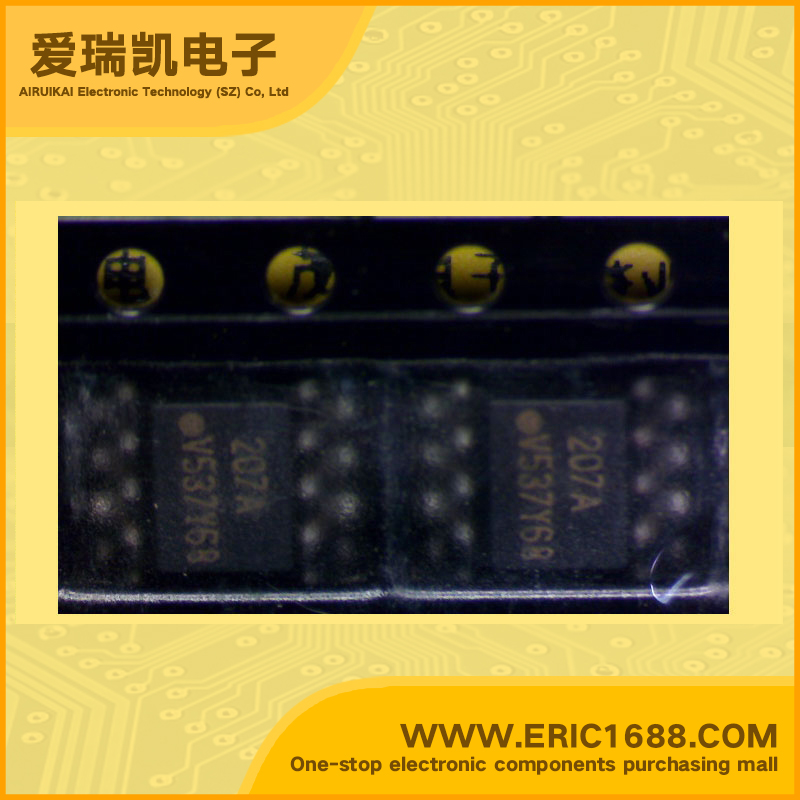

Photocoupler Transistor, Photovoltaic Output MOC207R1VM 4pin(gold) marking 207A
| 通道数 Number of Channels | 1 |
| 输入类型 Input Type | DC |
| 电压 - 隔离 Voltage - Isolation | 3000Vrms |
| 电流传输比（最小值） Current Transfer Ratio (Min) | 100% @ 10mA |
| 电流传输比（最大值） Current Transfer Ratio (Max) | 200% @ 10mA |
| 电压 - 输出 Voltage - Output | 70V |
| 电流 - 输出/通道 Current - Output / Channel | 150mA |
| 电流 - DC 正向 (If) Current - DC Forward (If) | 60mA |
| Vce 饱和值（最大值） Vce Saturation (Max) | 0.4V |
| 输出类型 Output Type | 有基极的晶体管 Transistor with Base |

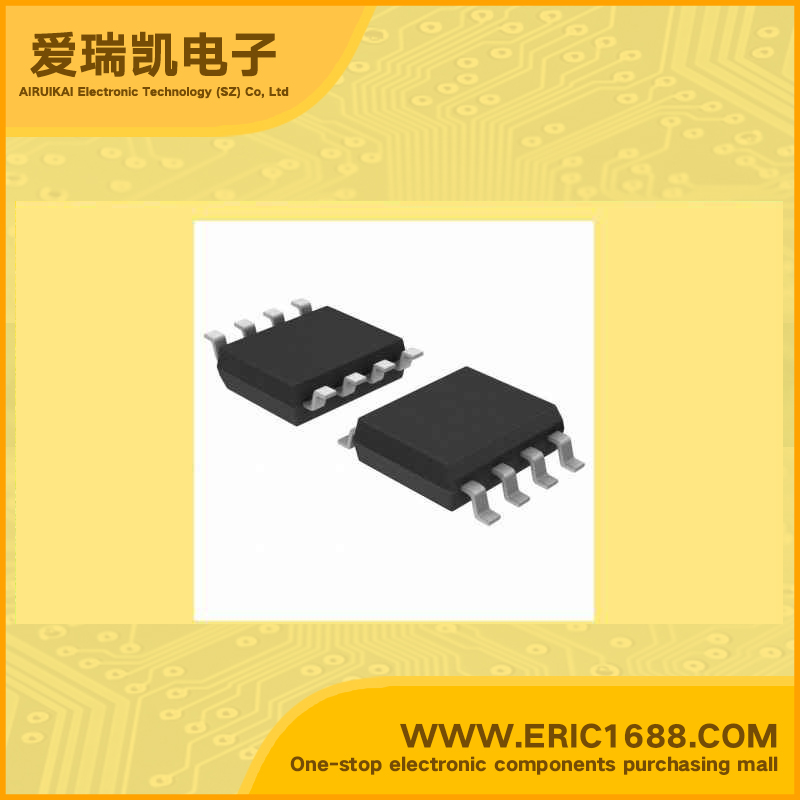

| Description & Applications | Features • SMALL OUTLINE OPTOISOLATORS TRANSISTOR OUTPUT • Convenient Plastic SOIC–8 Surface Mountable Package Style • Closely Matched Current Transfer Ratios • Minimum V(BR)CEO of 70 Volts Guaranteed • Standard SOIC–8 Footprint, with 0.050″ Lead Spacing • Shipped in Tape and Reel, which Conforms to EIA Standard RS481A • Compatible with Dual Wave, Vapor Phase and IR Reflow Soldering • High Input–Output Isolation of 3000 Vac (rms) Guaranteed • UL Recognized File #E54915 APPLICATIONS • Feedback Control Circuits • Interfacing and coupling systems of different potentials and impedances • General Purpose Switching Circuits • Monitor and Detection Circuits |
| 描述与应用 | 特点 •小外形晶体管输出光隔离器 •方便的塑料SOIC-8表面贴装封装形式 •紧密匹配的电流传输比 •最低V（BR）CEO，70伏特，保证 •标准SOIC-8足迹与0.050“引线间距 •发货编带和卷轴，符合EIA标准RS481A •兼容双波峰焊，气相和IR回流焊 •高输入输出隔离3000 VAC（有效值）保证 •UL识别的文件＃E54915 应用 •反馈控制电路 •接口和不同的潜能和阻抗耦合系统 •通用开关电路 •监控和检测电路 |
