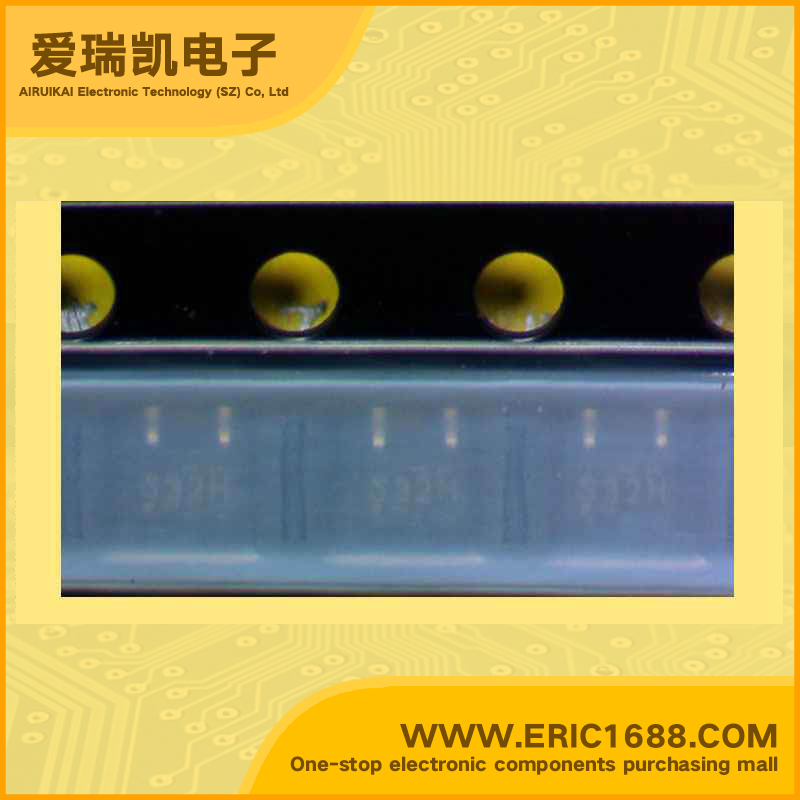

Integrated Circuit(IC) OR gate NC7S32P5X SOT-353/SC70-5/SC-88A marking S32

Hot selling goods

Product description
逻辑类型
Logic Type
或门 OR Gate
电路数
Number of Circuits
1
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
2V~6V
静态电流Iq
Current - Quiescent (Max)
1uA
输出高,低电平电流
Current - Output High, Low
-2.6mA,2.6mA
低逻辑电平
Logic Level - Low
0.5V
高逻辑电平
Logic Level - High
1.5V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
7ns @ 6V,50pF
Description & Applications2-Input OR Gate ;Features Space saving SOT23 or SC70 5-lead package High Speed; tPD 3.5 ns typ Low Quiescent Power; ICC < 1 µA Balanced Output Drive; 2 mA IOL, −2 mA IOH Broad VCC Operating Range: 2V–6V Balanced Propagation Delays Specified for 3V Operation
描述与应用2输入或门;特性 节省空间的SOT23或SC705引线封装 高速; TPD3.5 ns(典型值) 静态功耗低; ICC<1μA 平衡输出驱动器;毫安毫安IOH IOL,-2 宽广的VCC操作范围:2V-6V 平衡传输延时 3V操作规定
