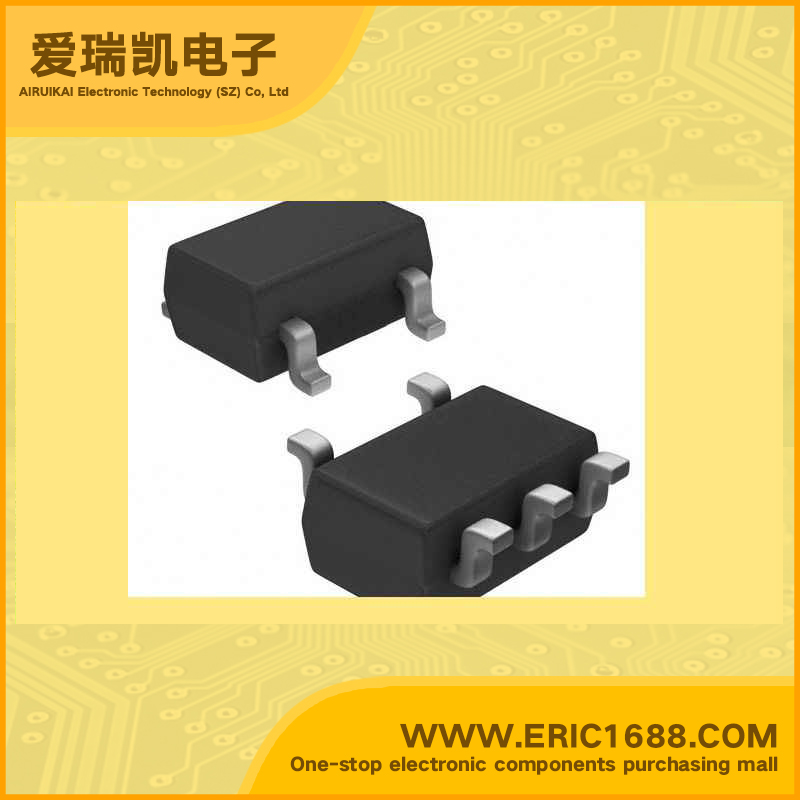

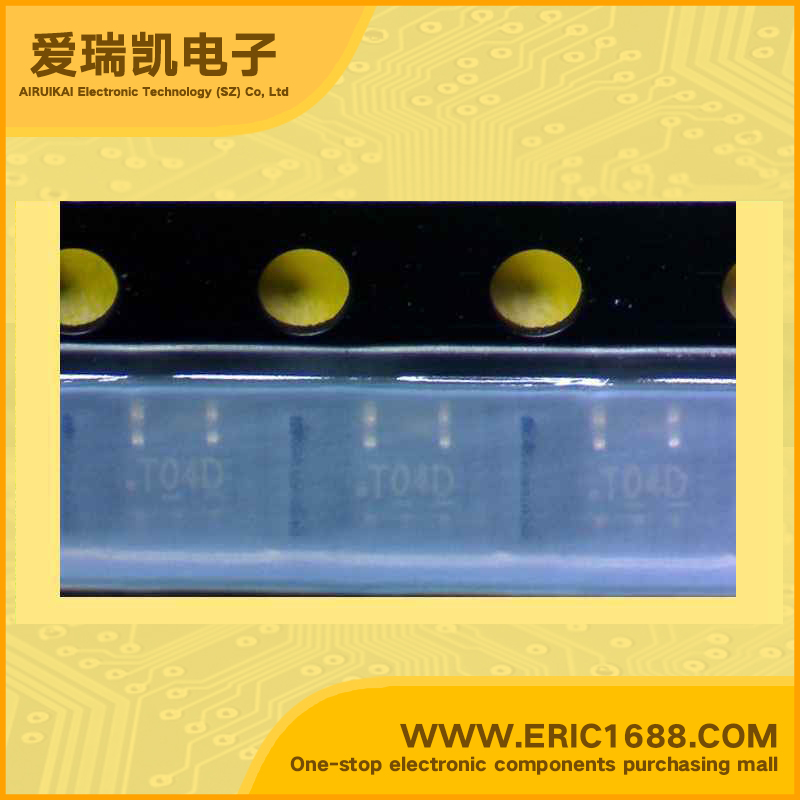

Integrated Circuit(IC) inverter NC7ST04P5X SOT-353/SC70-5/SC-88A marking

Hot selling goods

Product description
逻辑类型
Logic Type
反相器 Inverter
电路数
Number of Circuits
1
输入数
Number of Inputs
1
电源电压Vcc
Voltage - Supply
4.5V~5.5V
静态电流Iq
Current - Quiescent (Max)
1uA
输出高,低电平电流
Current - Output High, Low
-2mA,2mA
低逻辑电平
Logic Level - Low
0.8V
高逻辑电平
Logic Level - High
2V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
26ns @ 5.5V,50pF
Description & ApplicationsHST Inverter ;Features TinyLogic HST Inverter Space saving SOT23 or SC70 5-lead package High Speed; tPD <7 ns typ, VCC = 5V, CL= 15 pF Low Quiescent Power; ICC <1 µA typ, VCC = 5.5V Balanced Output Drive; 2 mA IOL, −2 mA IOH TTL-compatible inputs
描述与应用HST逆变器;特性 TinyLogicHST反相器 节省空间的SOT23或SC705引线封装 高速; TPD<7 ns(典型值),VCC=5V,CL= 15 pF 静态功耗低; ICC<1μA(典型值),VCC=5.5V 平衡输出驱动2毫安 IOL,-2毫安IOH TTL兼容的输入
