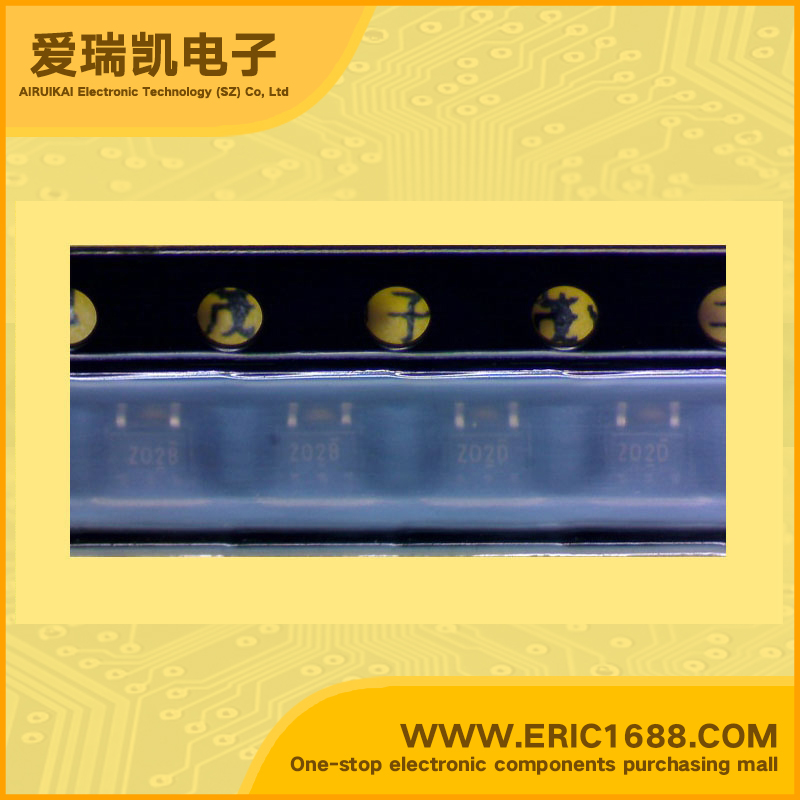

Integrated Circuit(IC) NOR gate NC7SZ02P5X SOT-353/SC70-5/SC-88A marking Z02

Hot selling goods

Product description
逻辑类型
Logic Type
或非门 NOR Gate
电路数
Number of Circuits
1
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
1.65V~5.5V
静态电流Iq
Current - Quiescent (Max)
2uA
输出高,低电平电流
Current - Output High, Low
-32mA,32mA
低逻辑电平
Logic Level - Low
0.1V~0.55V
高逻辑电平
Logic Level - High
1.7V~3.8V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
4.3ns @ 5V,50pF
Description & ApplicationsFeatures TinyLogic UHS 2-Input NOR Gate Space saving SOT23 or SC70 5-lead package Ultra High Speed: tPD 2.4 ns typ into 50 pF at 5V VCC High Output Drive: ±24 mA at 3V VCC Broad VCC Operating Range: 1.8V–5.5V Matches the performance of LCX when operated@3.3V VCC Power down high impedance inputs/output Overvoltage tolerant inputs facilitate 5V to 3V translation Patented noise/EMI reduction circuitry implemented
描述与应用特性 TinyLogicUHS2输入或非门 节省空间的SOT23或SC705引线封装 超高速:TPD2.4 ns(典型值)为50 pF的5V VCC 高输出驱动器:±24 mA在3V VCC 宽广的VCC工作电压范围:1.8V-5.5V 时的性能相匹配的LCX 运行@3.3V VCC 掉电高阻抗输入/输出 过压容限输入方便5V3V转换 专利的噪声/ EMI抑制电路实施
