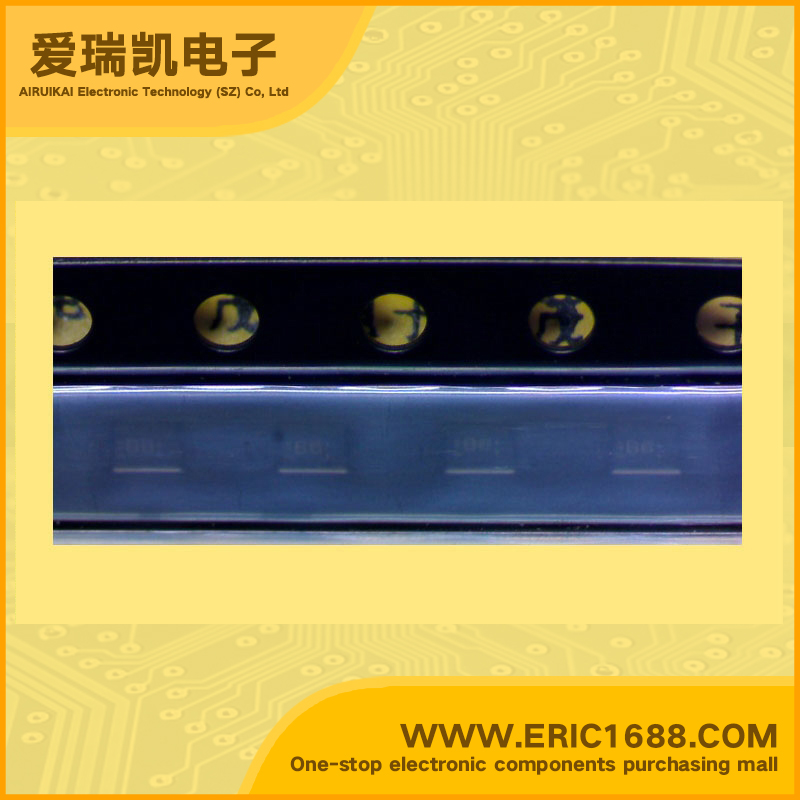

Integrated Circuit(IC) Inverting Schmitt trigger NC7SZ14L6X 6-UFDFN/TSOP6 marking B6

Hot selling goods

Product description
逻辑类型
Logic Type
反相施密特触发器 Inverting Schmitt trigger
电路数
Number of Circuits
1
输入数
Number of Inputs
1
电源电压Vcc
Voltage - Supply
1.65V~5.5V
静态电流Iq
Current - Quiescent (Max)
1uA
输出高,低电平电流
Current - Output High, Low
-32mA,32mA
低逻辑电平
Logic Level - Low
0.2V~1.2V
高逻辑电平
Logic Level - High
1.4V~3.6V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
5.9ns @ 5V,50pF
Description & ApplicationsFeatures TinyLogic®UHS Inverter with Schmitt Trigger Input Ultra-High Speed: tPD 3.7ns (Typical) into 50pF at 5V VCC High Output Drive: ±24mA at 3V VCC Broad VCC Operating Range: 1.65V to 5.5V Matches Performance of LCX when Operated at 3.3V VCC Power Down High Impedance Inputs/Outputs Over-Voltage Tolerance Inputs Facilitate 5V to 3V Translation Proprietary Noise/EMI Reduction Circuitry Ultra-Small MicroPak™ Packages Space-Saving SOT23 and SC70 Packages
描述与应用特性 TinyLogic®UHS反相器具有施密特触发器输入 超高速的TPD3.7ns(典型值)到50PF在5V VCC 高输出驱动器的±24mA电流在3V VCC 宽广的VCC工作电压范围:1.65V到5.5V 操作时,匹配性能LCX在3.3V VCC 掉电高阻抗输入/输出 过电压耐受输入方便5V到3V 翻译 专有的噪声/ EMI抑制电路 超小型的MicroPak™软件包 节省空间的SOT23和SC70封装
