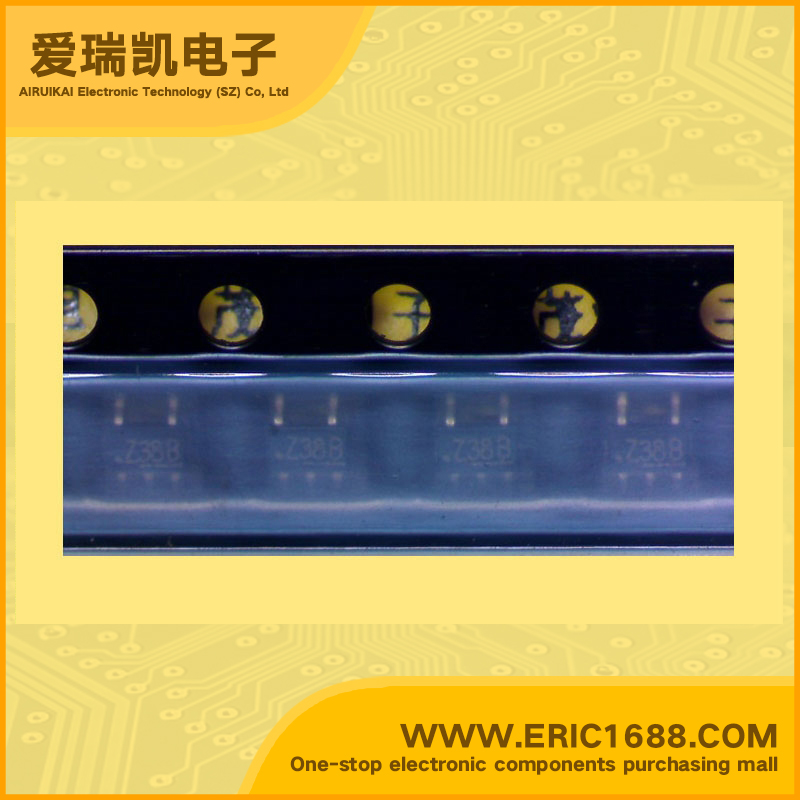

Integrated Circuit(IC) NAND gate NC7SZ38P5X SOT-353/SC70-5/SC-88A marking Z38

Hot selling goods

Product description
逻辑类型
Logic Type
与非门 NAND Gate
电路数
Number of Circuits
1
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
1.65V~5.5V
静态电流Iq
Current - Quiescent (Max)
2uA
输出高,低电平电流
Current - Output High, Low
-32mA,32mA
低逻辑电平
Logic Level - Low
高逻辑电平
Logic Level - High
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
4.3ns @ 5V,50pF
Description & ApplicationsFeatures TinyLogic® UHS 2-Input NAND Gate, Open Drain Output Ultra-High Speed: tPD 2.4ns (Typical) into 50pF at 5V VCC Open Drain Output Stage for OR Tied Applications High Output Sink Drive: 24mA at 3V VCC Broad VCC Operating Range: 1.65V to 5.5V Matches Performance of LCX Operated at 3.3V VCC Power Down High-Impedance Inputs/Outputs Over-Voltage Tolerance Inputs Facilitate 5V to 3V Translation Proprietary Noise/EMI Reduction Circuitry Ultra-Small MicroPak™ Packages Space-Saving SOT23 and SC70 Packages
描述与应用特性 TinyLogic®UHS2输入与非门,开漏输出 超高速的TPD2.4ns(典型值)到50PF在5V VCC 开漏输出级或连接应用 高输出灌驱动:24毫安在3V VCC 宽广的VCC工作电压范围:1.65V到5.5V LCX较量性能操作在3.3V VCC 掉电高阻抗输入/输出 过电压耐受输入方便5V至3V转换 专有的噪声/ EMI抑制电路 超小型的MicroPak™软件包 节省空间的SOT23和SC70封装
