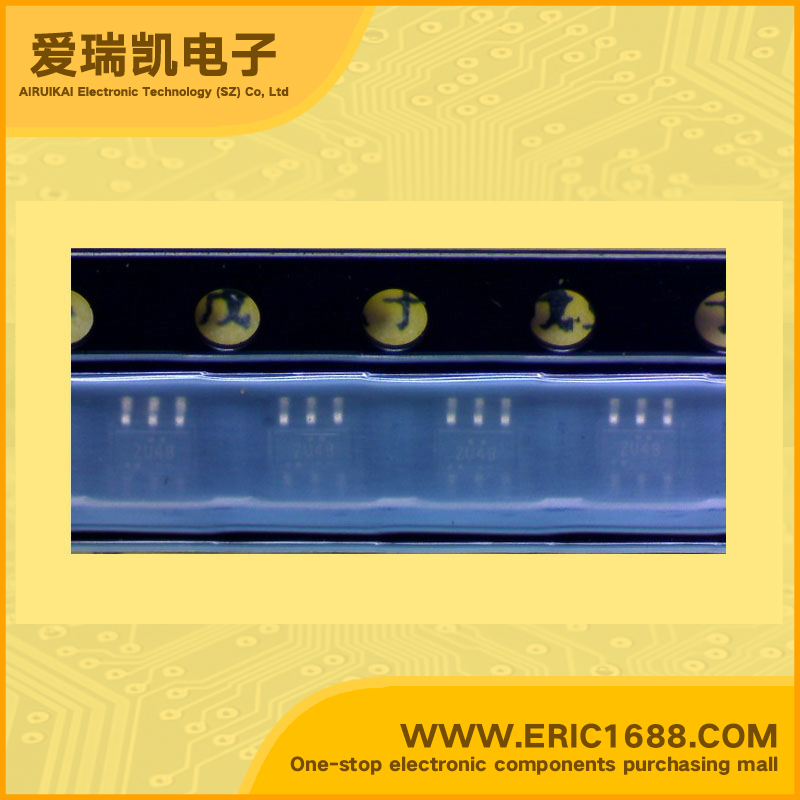

Integrated Circuit（IC） inverter NC7WZU04P6X SOT-363/SC70-6/SC88 marking ZU4
| 逻辑类型 Logic Type | 反相器 Inverter |
| 电路数 Number of Circuits | 2 |
| 输入数 Number of Inputs | 1 |
| 电源电压Vcc Voltage - Supply | 1.8V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 1uA |
| 输出高，低电平电流 Current - Output High, Low | -8mA，8mA |
| 低逻辑电平 Logic Level - Low | 0.1V~0.55V |
| 高逻辑电平 Logic Level - High | 1.55V~3.8V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 5.6ns @ 5V，50pF |
| Description & Applications | Features TinyLogic® UHS Dual Unbuffered Inverter Space saving SC70 6-lead package Ultra small MicroPak™ leadless package Unbuffered for crystal oscillator and analog applications Balanced output drive: ±8mA at 4.5V VCC Broad VCC operating range: 1.65V to 5.5V Low quiescent power: ICC < 1µA at 5V VCC, TA = 25°C |
| 描述与应用 | 特性 TinyLogic®UHS双重的无缓冲反相器 节省空间的SC70 6引脚封装 超小型MicroPak™标准的无铅封装 无缓冲的晶体振荡器和模拟应用 平衡输出驱动器：±8毫安在4.5V VCC 宽广的VCC操作范围：1.65V至5.5V 低静态功耗：ICC<1μA5V VCC，TA= 25°C |
