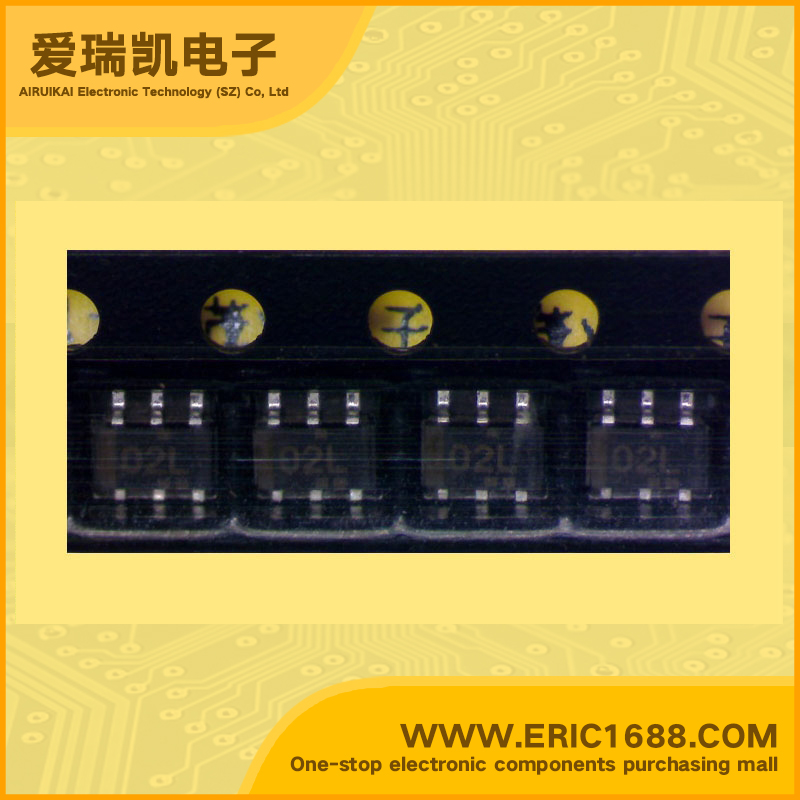

RF amplifier NJG1308F-TE1 SOT-163 marking 02L

Model：NJG1308F-TE1
Mark / screen / code / typing：02L
Manufacturer：
Date Code：05+ 05+
Package：SOT-163/SOT23-6
Standard Package：3000
Min Order：10

Hot selling goods

Product description

频率 Frequency	938MHz/1441MHz/1900MHz/1765MHz
P1dB	12dBm/11dBm/11/dBm/11dBm
增益 Gain	18dB/16dB/14dB/14dB
噪声系数 Noise Figure
RF 类型 RF Type	MMIC
电源电压 Voltage - Supply	3.0V
电源电流 Current - Supply	15mA
测试频率 Test Frequency
Description & Applications	FEATURES •DRIVER-AMPLIFIER GaAs MMIC •Low supply voltage operation +3.0V typ. •Low current consumption 15mA typ. @Pout=+8dBm •High gain 18dB typ. @f=938MHz 16dB @f=1441MHz 14dB @f=1900MHz •Pout at 1dB Gain Compression point +12dBm typ. @f=938MHz +11dBm typ. @f=1441/1900MHz •Package MTP6
描述与应用	特点 •驱动器放大器GaAs MMIC •低电源电压操作+3.0 V典型。 •低电流消耗15毫安典型。 @=+8 dBm的功率输出， •高增益18dB（典型值）。 @ F =938MHz 16分贝@ F =1441MHz 14分贝@ F =1900MHz的 •噘嘴在1dB增益压缩点+12 dBm的典型。 @ F =938MHz +11 dBm（典型值）。 @ F =1441/1900MHz的 •MTP6包装
