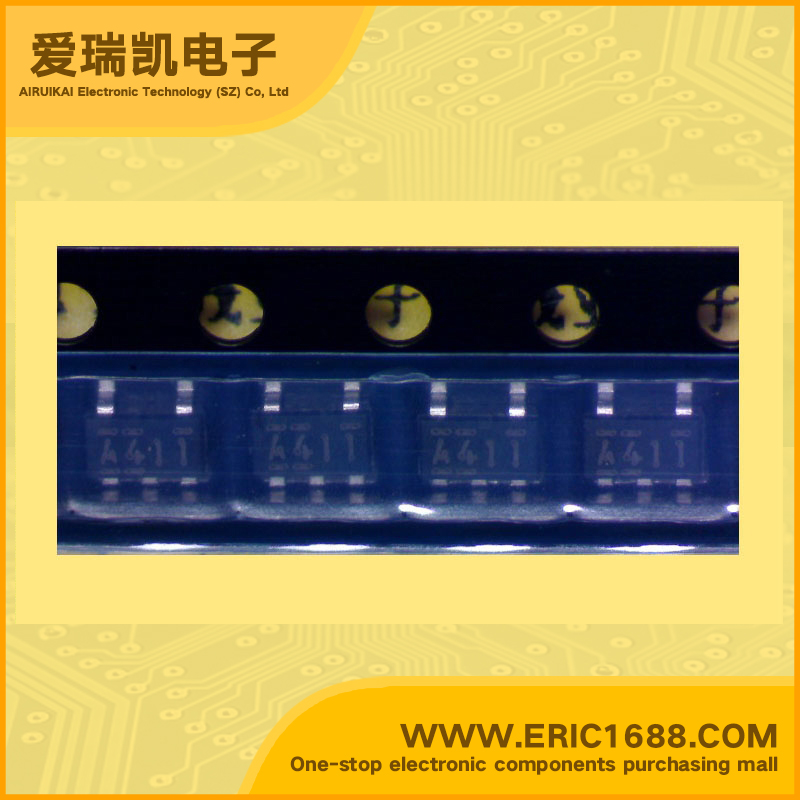

NJM2864F03 LDO Voltage Regulator 3V 100mV/0.1V With Enable Pin SOT-153/MTP5/SOT23-5 marking A41 Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
14V
输出电压VOUT
Voltage - Output
3V
输出电流Io
Current - Output
130mA/0.13A
最大压降VDO
Voltage - Dropout
100mV/0.1V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
200mW/0.2W
Description & ApplicationsUltra Low Noise Low Dropout Voltage Regulator ;• High Ripple Rejection 75dB typ. (f=1kHz) • Output capacitor with 1.0µF ceramic capacitor • Output Current Io(max.)=100mA • High Precision Output Vo±1.0% • Low Dropout Voltage 0.10V typ. (Io=60mA) • ON/OFF Control (Active High) • Internal Short Circuit Current Limit • Internal Thermal Overload Protection • Bipolar Technology
描述与应用超低噪声低压差稳压器;•高纹波抑制比为75dB。 (F =1kHz时) 输出电容1.0μF陶瓷电容器 •输出电流Io=100MA(最大) •高精度输出VO±1.0% •低压差电压0.10V(典型值)。值(Io=60毫安) •ON / OFF控制(高电平有效) •内部短路电流限制 •内部热过载保护 •双极技术
