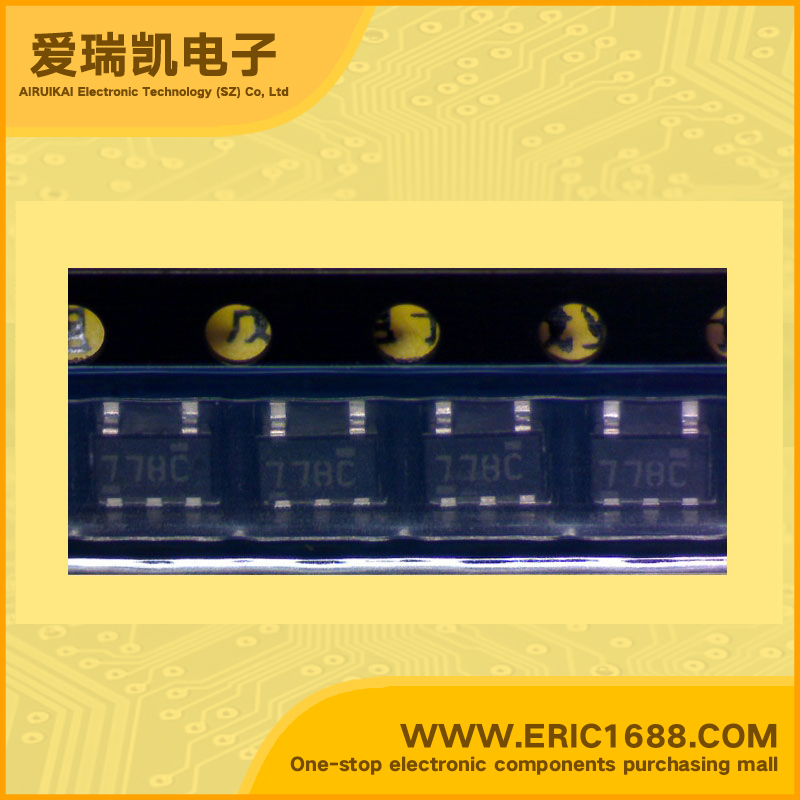

NJM2872F33 LDO Voltage Regulator 3.3V 100mV/0.1V With Enable Pin SOT-153/MTP5/SOT23-5 marking 77 Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
14V
输出电压VOUT
Voltage - Output
3.3V
输出电流Io
Current - Output
60mA
最大压降VDO
Voltage - Dropout
100mV/0.1V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
200mW/0.2W
Description & ApplicationsLOW DROPOUT VOLTAGE REGULATOR ;• High Ripple Rejection 70dB typ. (f=1kHz) • Output Noise Voltage Vno=30µVrms (Cp=0.01µF) • Output capacitor with 1.0uF ceramic capacitor (Vo≥2.7V) •Output Current Io(max.)=150mA •High Precision Output Vo±2% • Vo±1%:A Version • Low Dropout Voltage 0.10V typ. (Io=60mA) • ON/OFF Control (Active High) •Operating Voltage Range +2.5V∼+14V (Vo≤2.0V version) • Internal Short Circuit Current Limit • Internal Thermal Overload Protection • Bipolar Technology
描述与应用低压差稳压器;•高纹波抑制70dB(典型值)。 (F =1kHz时) •输出噪声电压VNO=30μVRMS(CP=0.01μF) 输出电容与1.0uF陶瓷电容器(VO≥2.7V) •输出电流Io(最大)=150MA •高精度输出VO±2%? •VO±1%:A版本 •低压差电压0.10V(典型值)。 (IO=60毫安) •ON / OFF控制(高电平有效) •工作电压范围+2.5 V〜+14 V(VO≤2.0V版本) •内部短路电流限制 •内部热过载保护 •双极技术
