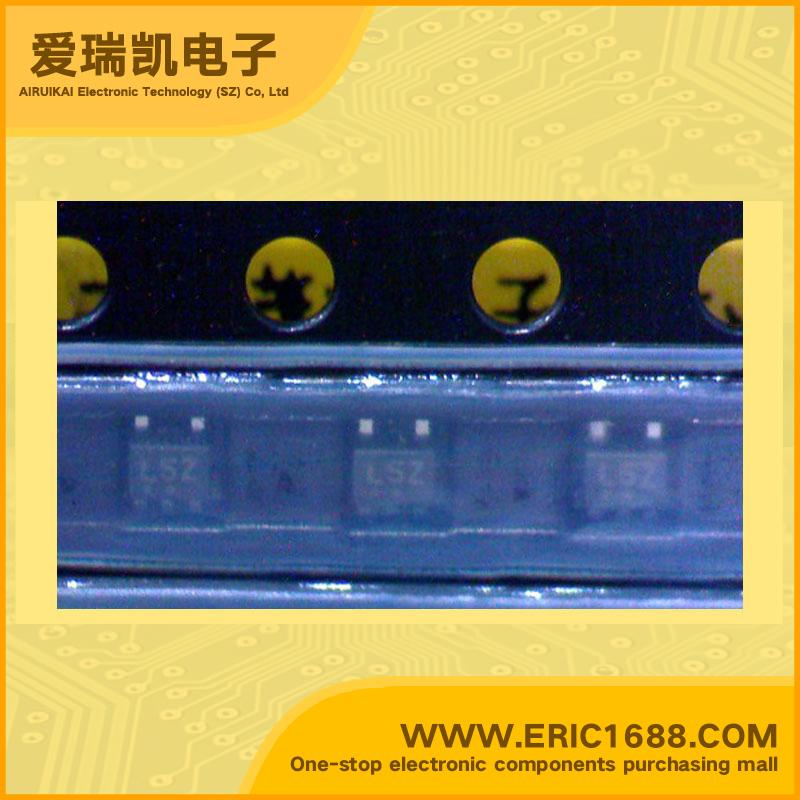

Integrated Circuit（IC） inverter NL17SZ04XV5T2G SOT-553 marking L5Z
| 逻辑类型 Logic Type | 反相器 Inverter |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 1 |
| 电源电压Vcc Voltage - Supply | 1.65V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 1uA |
| 输出高，低电平电流 Current - Output High, Low | -32mA，32mA |
| 低逻辑电平 Logic Level - Low | 0.1V~0.55V |
| 高逻辑电平 Logic Level - High | 1.29V~3.8V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 4.3ns @ 5V，50pF |
| Description & Applications | Features Single Inverter Tiny SOT−353 and SOT−553 Packages 24 mA Sink and Source Output Capability Over−Voltage Tolerant Inputs and Outputs Pin For Pin with NC7SZ04P5X, TC7SZ04FU and TC7SZ04AFE Chip Complexity: FETs = 20 Designed for 1.65 V to 5.5 V VCC Operation Pb−Free Packages are Available |
| 描述与应用 | 特性 单逆变 微型SOT-353和SOT-553封装 24 mA灌和源输出能力 过电压宽容输入和输出 引脚对引脚NC7SZ04P5X TC7SZ04FU TC7SZ04AFE 芯片的复杂性：FETs= 20 为1.65 V至5.5 VVCC运行 无铅封装 |
