low power inductor NLH252018T-R39J 390nH/0.39UH 2520-R39J R39

Model：NLH252018T-R39J

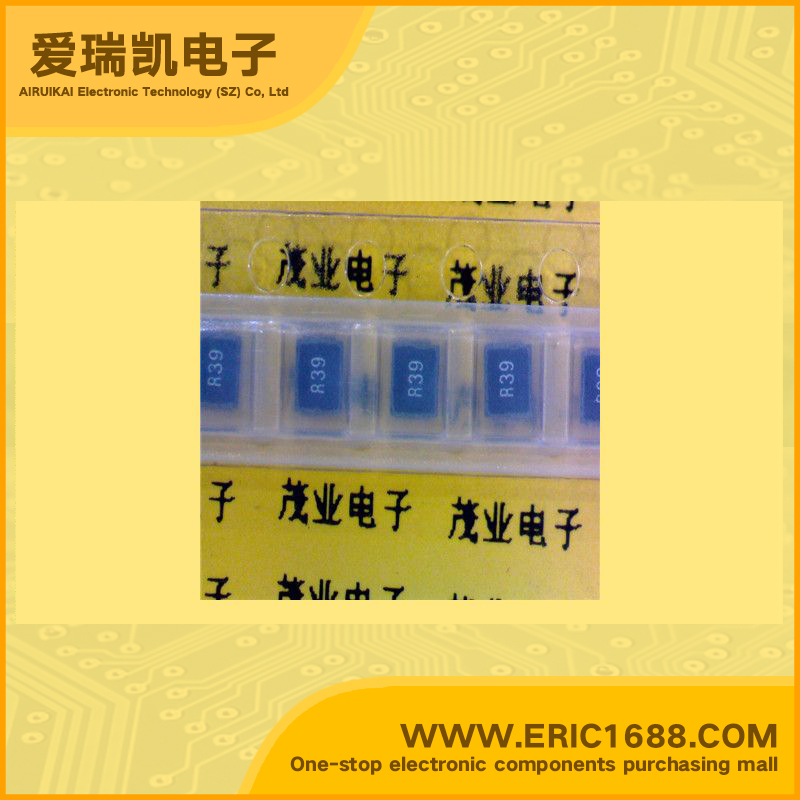

Mark / screen / code / typing：R39
Manufacturer：
Date Code：05+ 05+
Package：2520-R39J
Standard Package：2000
Min Order：10

Hot selling goods

Product description

电感值 Inductance	390nH/0.39UH
误差 Tolerance	±5%
额定电流 Current Rating	375mA
饱和电流 Current - Saturation
不同频率时的Q值 Q @ Frequency	40 @ 25.2MHz
自振谐频率SRF Frequency - Self Resonant	0.375GHz
DC电阻DCR DC Resistance (DCR)	0.73Ω/Ohm
屏蔽 Shielding
Description & Applications	NLH Series NLH2520 Type FEATURES • Supports operating frequencies of up to 2GHz with nominal inductance values from 10 to 820nH. • Compact winding structure ensures high Q. • Inductance tolerance is ±5 percent.
描述与应用	NLH NLH2520系列类型特点 •运行频率高达2GHz，电感值从10到820nH容。 •紧凑型绕组结构，确保高Q值. •电感容差为±5％。
