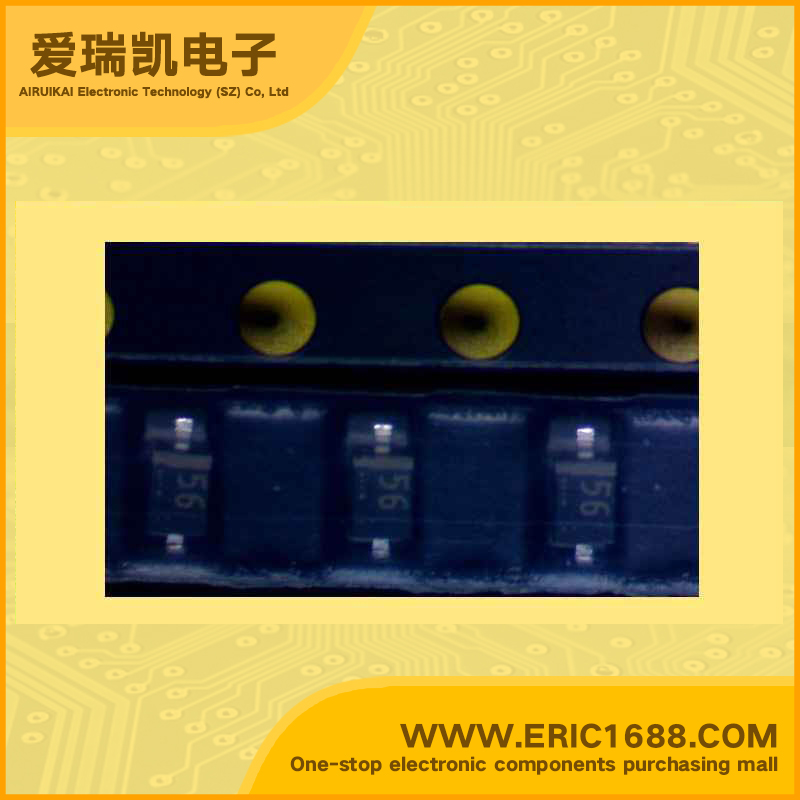

NNCD5.6D TVS/ESD 0.2W/200mW SOD323/0805-5.6V marking 56

Hot selling goods

Product description
极性
Polarization
单向 Unidirectional
反向关断电压/工作电压VRWM
Reverse Standoff Voltage
反向击穿电压VBR
Breakdown Voltage
5.6V
峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation
85W
峰值脉冲电流IPPm
Peak Forward Surge Current
额定耗散功率Pd
Power dissipation
0.2W/200mW
Description & ApplicationsFEATURES • ELECTROSTATIC DISCHARGE NOISE CLIPPING DIODES(200 mW TYPE) • Based on the electrostatic discharge immunity test (IEC1000-4-2), the product assures the minimum endurance of 30 kV. • Based on the reference supply of the set, the product achieves a series over a wide range (15 product name lined up). APPLICATIONS • External interface circuit E.S.D protection. • Circuits for Waveform clipper, Surge absorber.
描述与应用特点 •静电放电噪声削波二极管(200毫瓦式) •基于静电放电抗扰度试验(IEC1000-4-2),产品保证30千伏最小耐力。 •基于基准电源的设置,产品达到一系列在很宽的范围内(15个产品名称排队)。 应用 •外部接口电路E.S.D保护。 •波形剪,浪涌吸收电路。
