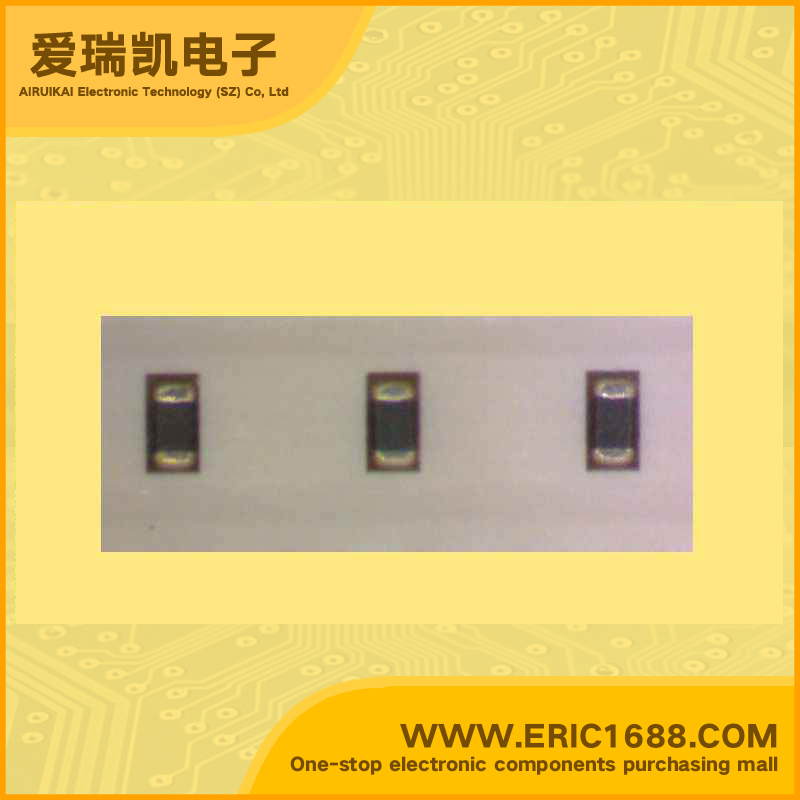

Thermistor NTCG163JF103FT1 10kΩ 0603-10K

Hot selling goods

Product description
电阻值(25℃)
Resistance in Ohms @ 25°C
10kΩ
电阻容差
Resistance Tolerance
1%
B 值容差
B Value Tolerance
1%
B0/50
B25/50
B25/75
B25/853435K
B25/100
功耗
Power Dissipation
Description & ApplicationsSmall sized 0603 type (L0.6×W0.3×T0.3mm) series are available. • Lead (Pb) free product. By using lead-less terminal electrodes and electroplating (Ni-Sn), this product realized excellent solderablity and soldering heat resistance, comparing with the conventional eutectic mixture solder and lead-free solder (Sn/Ag/Cu, etc.). • Good solderability. • Layered internal electrode structure. • Product series provides a wide range of resistances and B constants. • Good stability of resistance value after soldering. • The 0603, 1608 and 1005 types provide 3 different shapes with identical resistance-temperature characteristics. • Attains less that low floating capacitance (using TCXO) in the high frequency region.
描述与应用0603型小型(L0.6×W0.3×T0.3mm)系列。 •铅(Pb)免费产品。 通过使用铅较少的终端电极和电镀(镍锡),该产品实现出色的solderablity和焊接热 性,较与传统的低共熔混合物焊料和无铅焊料(锡/银/铜,等)。 •良好的可焊性。 •分层的内部电极的结构。 •产品系列提供了广泛的电阻和B常数。 •稳定性好,焊接后的电阻值。 •0603,1608和1005提供了3个不同形状的相同的电阻 - 温度特性。 所获,低的浮动电容在高频区域(使用TCXO)。
