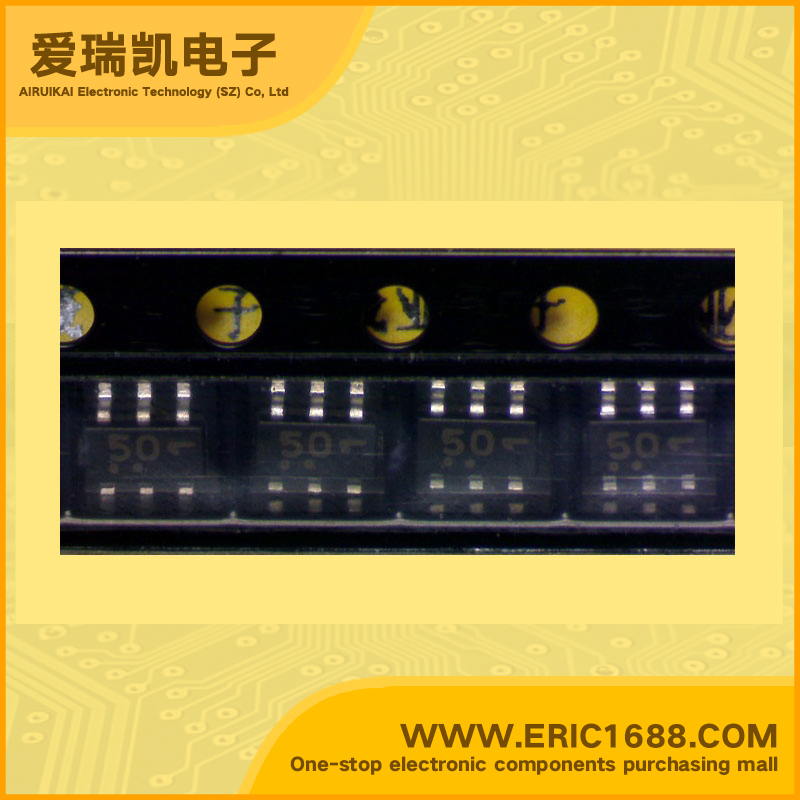

NUS2401SNT1G NPN+NPN+PNP Complex Bipolar Digital Transistor 60V 0.2A 0.35W SOT-163/SC-74/SOT457 marking 50 switching inverting interface driver circuit
|
V(BR) CBO Collector-Base Voltage Q1/Q2/Q3 |
60V/60V/-60V |
|
V(BR) CEO Collector-Emitter Voltage Q1/Q2/Q3 |
50V/50V/-50V |
| Collector Current(IC) Q1/Q2/Q3 | 0.2A/0.2A/-0.2A |
| Base-Emitter Input Resistance Ratio (R1/R2) Q3 | (Q3) R1/R2=10KΩ/10K=1 |
| DC Current Gain(hFE) Q1/Q2/Q3 | 150~350/150~350/35~60 |
| Transtion Frequency(fT) Q1/Q2/Q3 | |
| Power Dissipation （Pd） | 350MW/0.35W |
| Description & Applications | Integrated PNP/NPN Digital Transistors Array
Audio Muting Applications
• Drive Circuits Applications
• Industrial: Small Appliances, Security Systems, Automated Test
• Consumer: TVs and VCRs, Stereo Receivers, CD Players,
Cassette Recorders
|
