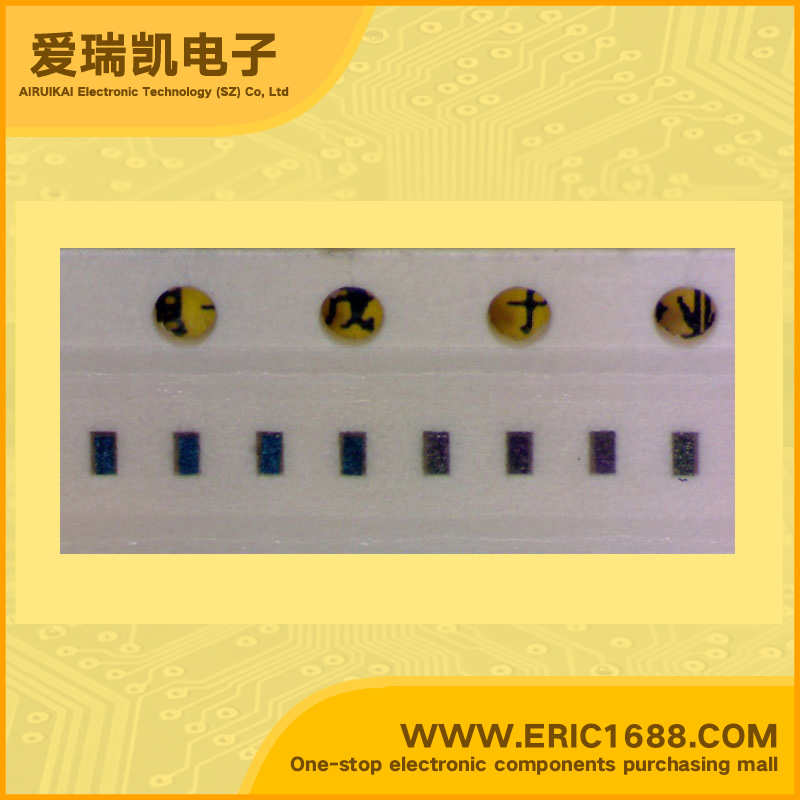

P0402FC05C-T710-2 TVS/ESD 5.0V 17A 0402 marking

Hot selling goods

Product description
极性
Polarization		双向 Bidirectional
反向关断电压/工作电压VRWM
Reverse Standoff Voltage		5.0V
反向击穿电压VBR
Breakdown Voltage		6.0V
峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation		250W
峰值脉冲电流IPPm
Peak Forward Surge Current		17A
额定耗散功率Pd
Power dissipation
Description & Applications250w FliP ChiP tvs aRRay；Features • Compatible with IEC 61000-4-2 (ESD): Air 15kV, Contact 8kV • Compatible with IEC 61000-4-4 (EFT): 40A, 5/50ns • ESD Protection > 25 kilovolts • Available in Voltages Ranging from 3.3V to 36V • 250 Watts Peak Pulse Power per Line (tp = 8/20µs) • Protection for 1 Line • RoHS Compliant • REACH Compliant
描述与应用250W倒装芯片TVS阵列;特性 •适用于IEC 61000-4-2（ESD：接触8kV，空气15KV， •适用于IEC61000-4-4（EFT：40A，5/50ns •ESD保护>25千伏 •3.3V至36V电压范围 •250瓦每线峰值脉冲功率（TP =8/20μS •保护1线 •符合RoHS标准 •符合REACH标准
