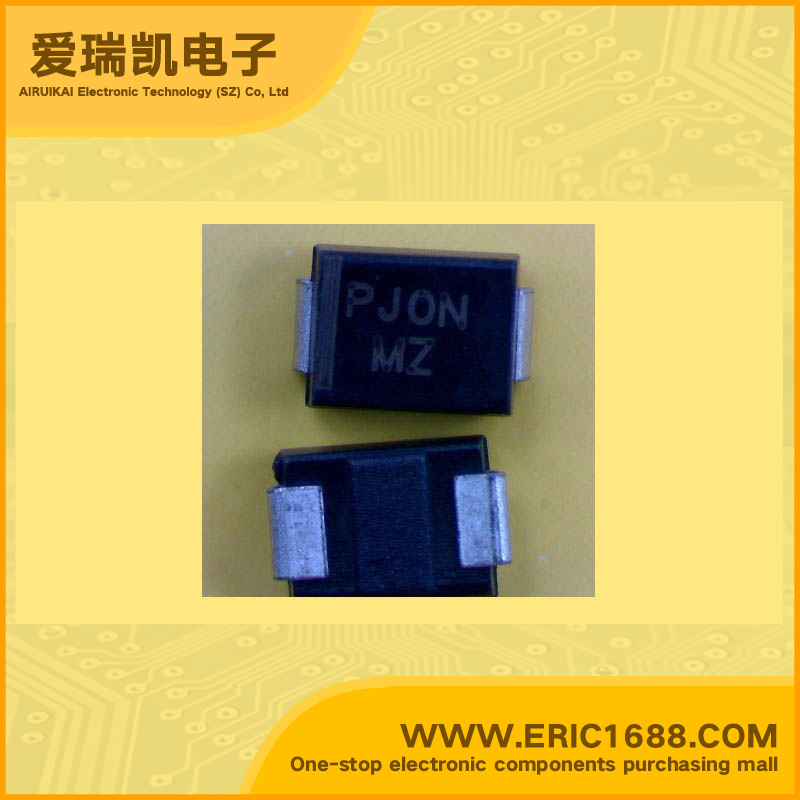

P6SMBJ51A-MZ TVS/ESD 51V 7.3A DO-214AA/SMB-51V marking MZ
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 51V |
| 反向击穿电压VBR Breakdown Voltage | 56.7V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 600W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 7.3A |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR POWER 600 Watts；FEATURES • For surface mounted applications in order to optimize board space. • Low profile package • Built-in strain relief • Glass passivated junction • Low inductance • Typical ID less than 1.0µA above 10V • Plastic package has Underwriters Laboratory Flammability Classification 94V-O • High temperature soldering : 260°C /10 seconds at terminals • In compliance with EU RoHS 2002/95/EC directives |
| 描述与应用 | 表面贴装型瞬态电压抑制器功率600瓦;特性 •对于表面安装应用，以优化电路板空间。 •薄型包装 •内置应变救灾 •玻璃钝化结 •低电感 •典型的ID小于1.0μA高于10V •塑料包装已获UL可燃性分类94V-O •高温焊接：260°C /10秒钟终端 •符合欧盟RoHS指令2002/95/EC指令 |
