PEMZ2 PNP+NPN Complex Bipolar Transistor 60V 0.15A HEF=120~560 140MHZ SOT666 marking Z2 switch and digital circuit application

Model：PEMZ2

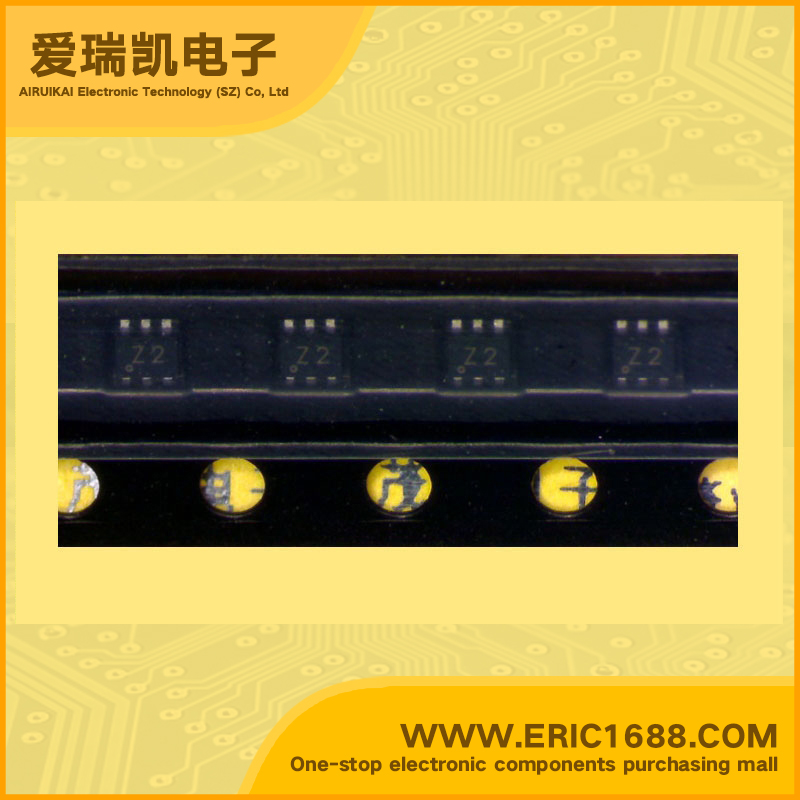

Mark / screen / code / typing：Z2
Manufacturer：
Date Code：06+ROHS 05+
Package：SOT-563/SOT666
Standard Package：4000
Min Order：10

Hot selling goods

Product description

V(BR) CBO Collector-Base Voltage TR1/TR2	-60V/60V
V(BR) CEO Collector-Emitter Voltage TR1/TR2	-50V/50V
Collector Current(IC) TR1/TR2	-0.15A/0.15A
Transtion Frequency(fT) TR1/TR2	140MHZ/180MHZ
DC Current Gain(hFE) TR1/TR2	120~560/120~560
VCE (sat) Collector-Emitter Saturation Voltage TR1/TR2	-0.5V/0.4V
Power Dissipation (Pd) TR1/TR2	0.15W/0.15W
Description & Applications	Both a 2SA1037AK chip and 2SC2412K chip in a EMT
Technical Documentation Download	Read Online
