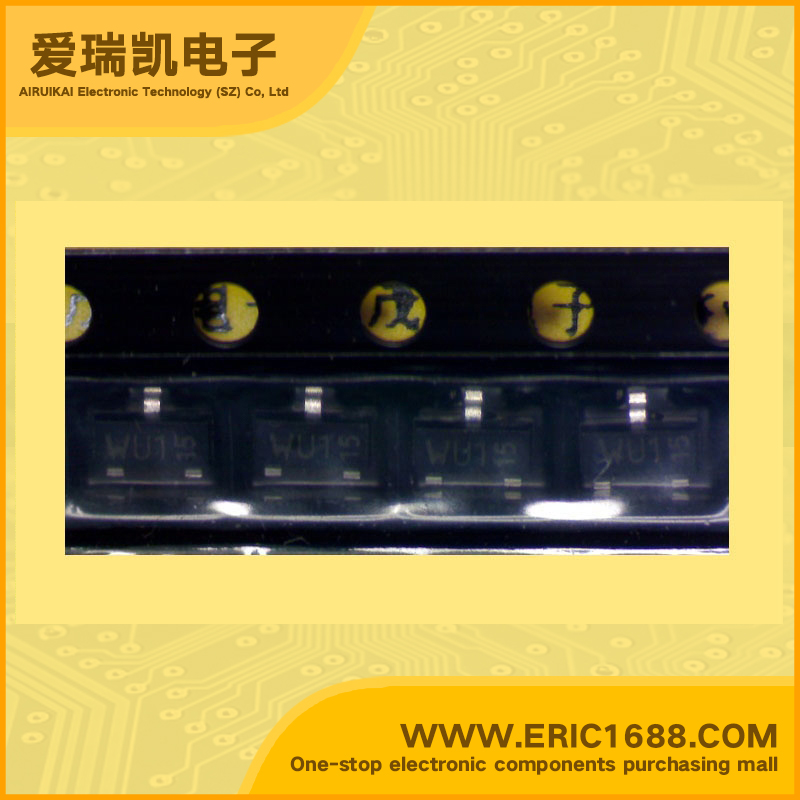

PESD5V2S2UT TVS/ESD 5V 15A SOT-23-5V marking WU1
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 5V |
| 反向击穿电压VBR Breakdown Voltage | 6.4V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 260W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 15A |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | Features • Double ESD protection diodes in SOT23 package • Uni-directional ESD protection of up to two lines • Max. peak pulse power: Ppp = 330 W at tp = 8/20 µs • Low clamping voltage: V(CL)R = 20 V at Ipp = 18 A • Ultra-low reverse leakage current: IRM < 700 nA • ESD protection > 23 kV • IEC 61000-4-2; level 4 (ESD) • IEC 61000-4-5 (surge); Ipp = 18 A at tp = 8/20 µs |
| 描述与应用 | 特性 •双SOT23封装ESD保护二极管 •单向ESD保护可至双线 •最大峰值脉冲功率：Ppp=330 W@tp= 8/20μs •低钳位电压：V（CL）R =20 V Ipp=18Å •超低反向漏电流：IRM<700 nA •ESD保护>23千伏 •IEC61000-4-2第4级（ESD） •IEC61000-4-5（浪涌），Ipp=18 A@tp= 8/20μs |
