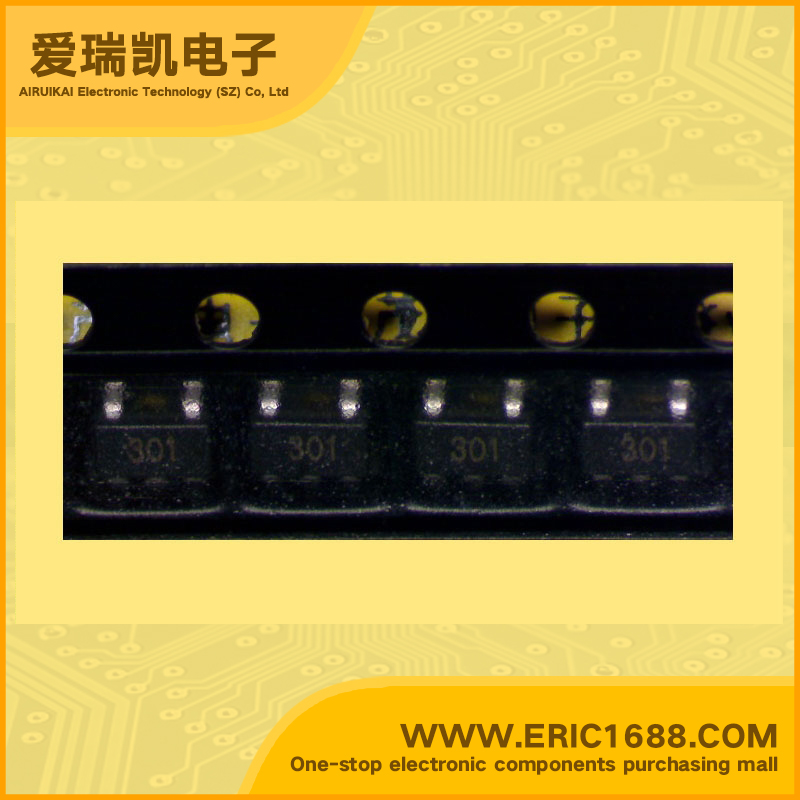

PI5C3301 Signal Switch, Multiplexer, Decoder SOT-153/SOT23-5/SC-74A marking 301
| 逻辑类型 Logic Type | 信号开关 Bus Switch |
| 电路数 Number of Circuits | 1 x 1:1 |
| 输入数 Number of Inputs | 1 |
| 电源电压Vcc Voltage - Supply | |
| 静态电流Iq Current - Quiescent (Max) | 单电源 Single Supply |
| 输出高，低电平电流 Current - Output High, Low | 4 V ~ 5.5 V |
| 低逻辑电平 Logic Level - Low | Pericom Semiconductor’s PI5C series of logic circuits are produced using the Company’s advanced submicron CMOS technology, achieving industry leading speed grades.The PI5C3301 is a single digital switch designed with a fast enable.When enabled via the associated Bus Enable (BE) pin, the “A” pinis directly connected to the “B” pin. The bus switch introduces no additional propagation delay or additional ground bounce noise.The PI5C3301 device has an active LOW enable. Near zero propagation delay 5-Ohm switches connect inputs to outputs Direct bus connection when switches are ON Ultra Low Quiescent Power (0.2µA Typical) Ideally suited for notebook applications Packages available: 5-pin plastic S0T23 (T) 5-pin plastic SC70 (C) |
| 高逻辑电平 Logic Level - High | 百利通半导体的PI5C系列逻辑电路，使用本公司先进的亚微米CMOS技术生产，实现业界领先的速度等级。PI5C3301是一个单一的数字交换机且设计了一个快速使能。当启用时通过相关的总线使能引脚（BE），“A”引脚直接连接到“B”引脚。总线开关没有引入额外的传输延迟或额外地弹噪声。PI5C3301装置具有主动低使能。 近零传播延迟 5欧姆交换机输入连接输出 直接总线连接，在开关打开时 超低静态功耗（0.2μA典型） 非常适合笔记本电脑应用 套件： 5引脚塑料S0T23（T） 5引脚塑料SC70（C） |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | |
| Description & Applications | |
| 描述与应用 |
