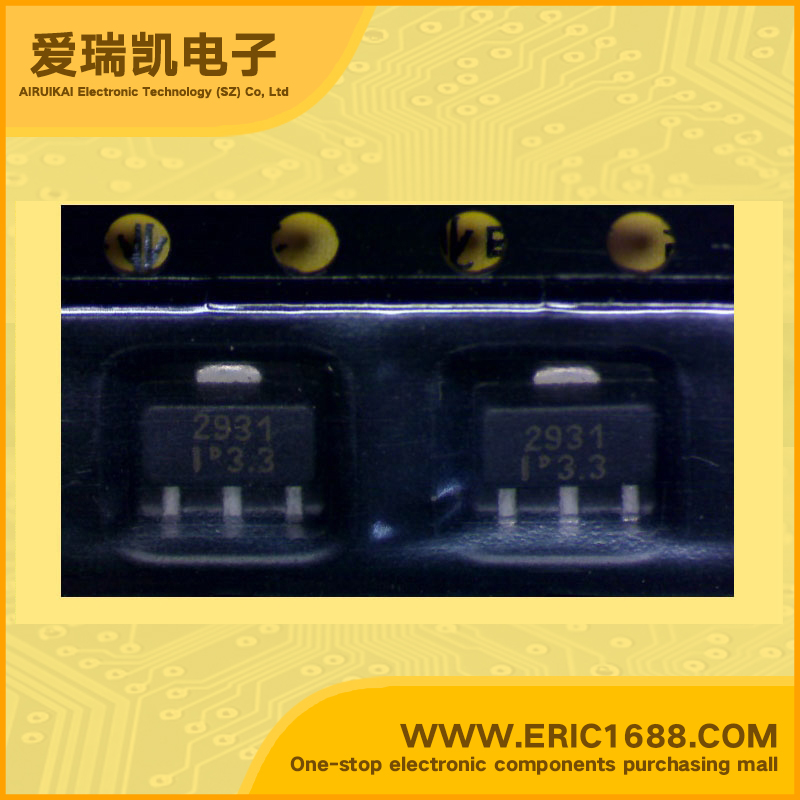

PJ2931CY-3.3V LDO Voltage Regulator 3.3V 300mV/0.3V SOT-89 marking 2931 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 26V |
| 输出电压VOUT Voltage - Output | 3.3V |
| 输出电流Io Current - Output | 100mA/0.1A |
| 最大压降VDO Voltage - Dropout | 300mV/0.3V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | Ultra Low Dropout Voltage Regulator ；• Very low quiescent current • Output current up to 100mA • Input-Output differential less than 0.6V • Reverse battery protection • Unregulated DC input can withstand +60V positive transients and -20V reverse battery • Short circuit protection • Internal thermal overload protection • Available as adjustable with TTL compatible switch • 100% electrical burn-in in thermal limit |
| 描述与应用 | 超低压差稳压器;•非常低的静态电流 •输出电流高达100mA •输入输出差分小于0.6V •反向电池保护 •管制DC输入可承受+60 V积极瞬变 和-20V的反向电池 •短路保护 •内部过热保护 •可与TTL兼容开关可调 •100％电烧，热限制 |
