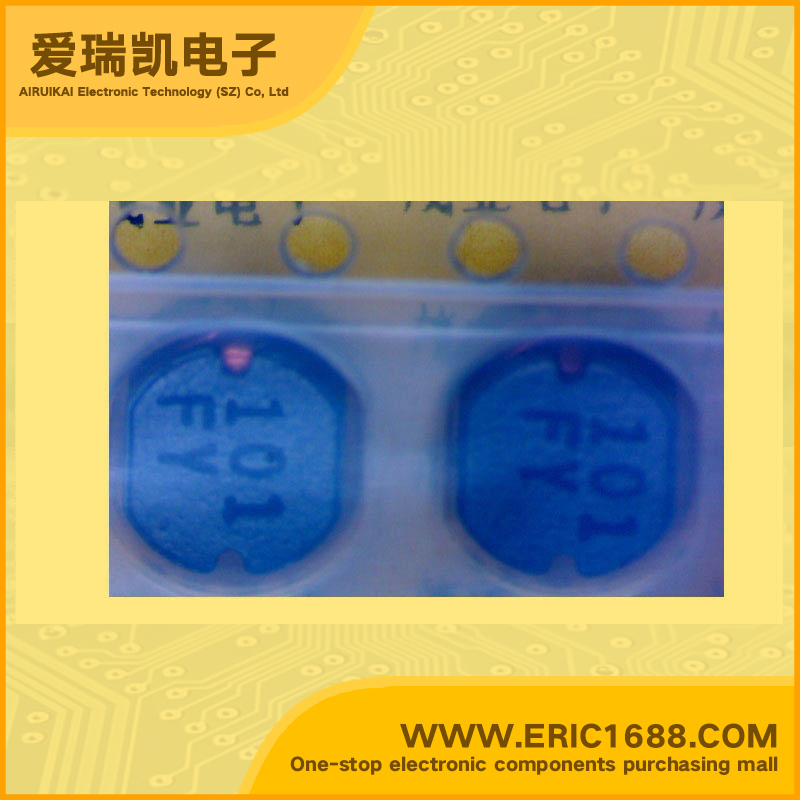

low power inductor PM54-101K 100UH 5M-101
| 电感值 Inductance | 100UH |
| 误差 Tolerance | ±10% |
| 额定电流 Current Rating | 520mA |
| 饱和电流 Current - Saturation | |
| 不同频率时的Q值 Q @ Frequency | |
| 自振谐频率SRF Frequency - Self Resonant | 9MHz |
| DC电阻DCR DC Resistance (DCR) | 0.7Ω/Ohm |
| 屏蔽 Shielding | 无屏蔽 Unshielded |
| Description & Applications | PM54 Series Special Features • High current capacity • Ferrite bobbin core • Low core loss for high frequency power application • Compact size • Large terminal surface for good PCB bonding • Operating temperature -30 to +100°C • Tape & reel packaged 1500/reel |
| 描述与应用 | PM54系列 特殊功能 •高电流容量 •铁氧体筒子核心 •磁芯损耗低 •紧凑的尺寸 •大型终端良好的PCB表面粘接 •工作温度-30至+100°C •磁带和卷轴包装1500/reel |
