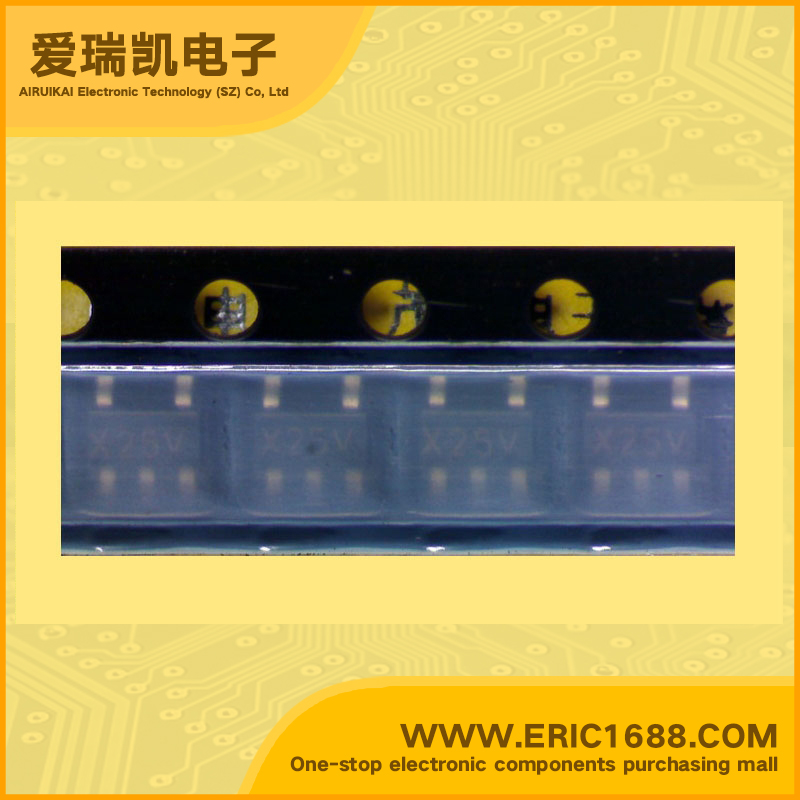

PQ1X251M2ZP LDO Voltage Regulator 1.5V 200mV/0.2V With Enable Pin SOT-153/SOT23-5 marking X25 Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
9V
输出电压VOUT
Voltage - Output
1.5V
输出电流Io
Current - Output
150mA/0.15A
最大压降VDO
Voltage - Dropout
200mV/0.2V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
350mW/0.35W
Description & ApplicationsLow Output Current, Compact Surface Mount Type Low Power-Loss Voltage Regulators ;• Compact surface mount package (2.9×1.6×1.1mm) •Low power-loss (Dropout voltage: TYP. 0.11 V/MAX. 0.26V at IO=60mA) Also compatible ceramic capacitors because of suppressing oscillation level •High ripple rejection (TYP. 70dB) •Built-in ON/OFF control function (Dissipation current at OFF-state: MAX. 1μA) •Built-in overcurrent and overheat protection functions *It is available for every 0.1V of output voltage (1.3V to 5.0V) •RoHS directive compliant
描述与应用低输出电流,紧凑的表面贴装型低功率损耗电压调节器;•小型表面贴装封装(2.9×1.6×1.1毫米) •低功率损耗    (漏失电压:典型值0.11 V/最大0.26V IO=60毫安)     同时兼容陶瓷电容器,因为抑制     振荡水平 •高纹波抑制(典型值70分贝) •内置的ON / OFF控制功能    (在关断状态消耗电流:最大1μA) •内置过流和过热保护功能    *这是每一个0.1V的输出电压(1.3V至5.0V) •符合RoHS指令
List of related models
