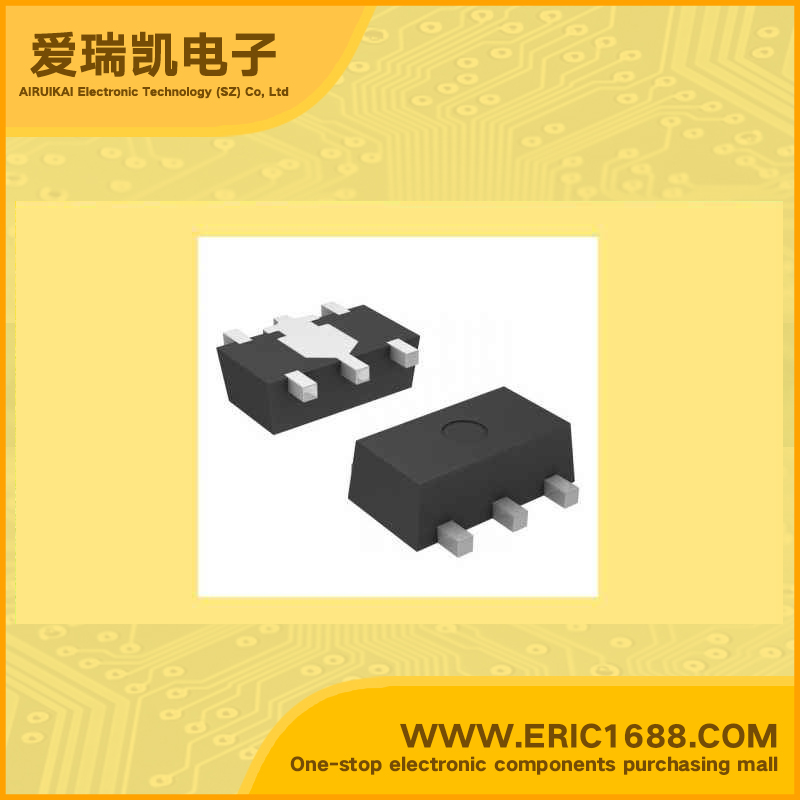

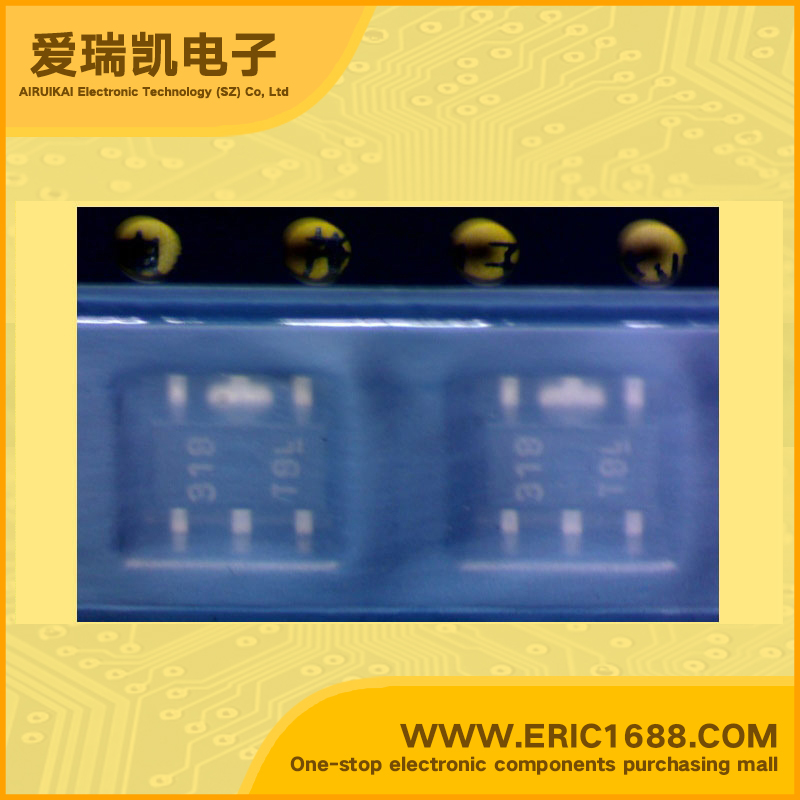

PQ2L3182MSPQ LDO Voltage Regulator 3.3/1.8V 160mV/240mV SOT89-5 marking 318 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 2 |
| 输入电压VIN Voltage - Input | 9V |
| 输出电压VOUT Voltage - Output | 3.3/1.8V |
| 输出电流Io Current - Output | 100mA/200mA |
| 最大压降VDO Voltage - Dropout | 160mV/240mV |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | 900mW/0.9W |
| Description & Applications | 2-Output Type Low Power-Loss Voltage Regulators ;•Compact surface mount package (4.5×4.3×1.5mm) •Each channel 250mA Output 1:Voltage 3.3V / 2.5V Output 2:Voltage 3.3V / 2.5V / 1.8V / 1.5V •Power dissipation : MAX.900mW (At surface-mounted condition) •Low power-loss (Dropout voltage : MAX. 0.4V at IO=100mA) •Use of ceramic capacitor is possible as output smooth capacitor •RoHS directive compliant •CD-ROM drives •DVD-ROM drives •Digital Still Cameras |
| 描述与应用 | 2输出型 低功率损耗电压调节器;•紧凑的表面贴装封装（4.5×4.3×1.5毫米） •每个通道250MA 输出1：电压3.3V/2.5V 输出2：电压3.3V /2.5V /1.8V/1.5V •MAX.900mW功耗： （在表面安装条件） •低功率损耗 （漏失电压：0.4V最大IO=100MA） •使用陶瓷电容作为输出 平滑电容器 •符合RoHS指令 •CD-ROM驱动器 •DVD-ROM驱动器 •数码相机 |
