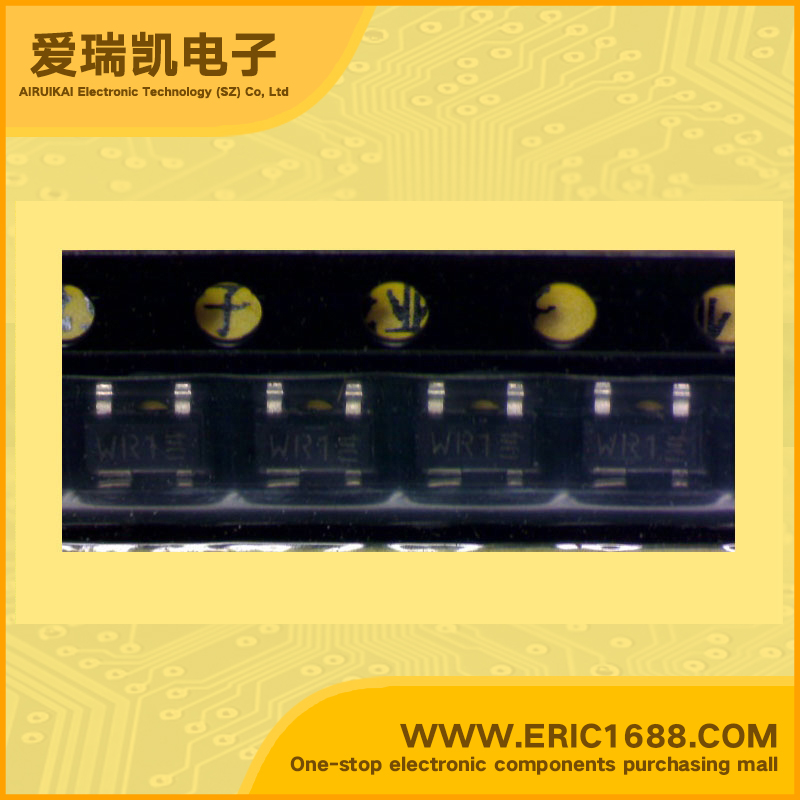

PRTR5V0U2X TVS/ESD 5.5V SOT-143 marking R1

Hot selling goods

Product description
极性
Polarization
双向 Bidirectional
反向关断电压/工作电压VRWM
Reverse Standoff Voltage
5.5V
反向击穿电压VBR
Breakdown Voltage
6V
峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation
峰值脉冲电流IPPm
Peak Forward Surge Current
额定耗散功率Pd
Power dissipation
Description & ApplicationsFEATURES •Ultra low capacitance double rail-to-rail ESD protection diode •ESD protection of two Hi-Speed data lines or high-frequency signal lines •Ultra low input/output to ground capacitance: C(I/O-GND) = 1 pF •ESD protection up to 8 kV IEC 61000-4-2, level 4 (ESD) •Very low clamping voltage due to an integrated additional ESD protection diode •Very low reverse current •Small SMD plastic package
描述与应用特性 •超低电容双轨至轨ESD保护二极管 •两个高速数据线或高频信号线ESD保护 •超低输入/输出对地电容:C(I / O-GND)=1 pF的 •高达8 kVESD保护 IEC61000-4-2第4级(ESD) •极低的钳位电压,由于集成额外的ESD保护二极管 •非常低的反向电流 •小SMD塑料包装
