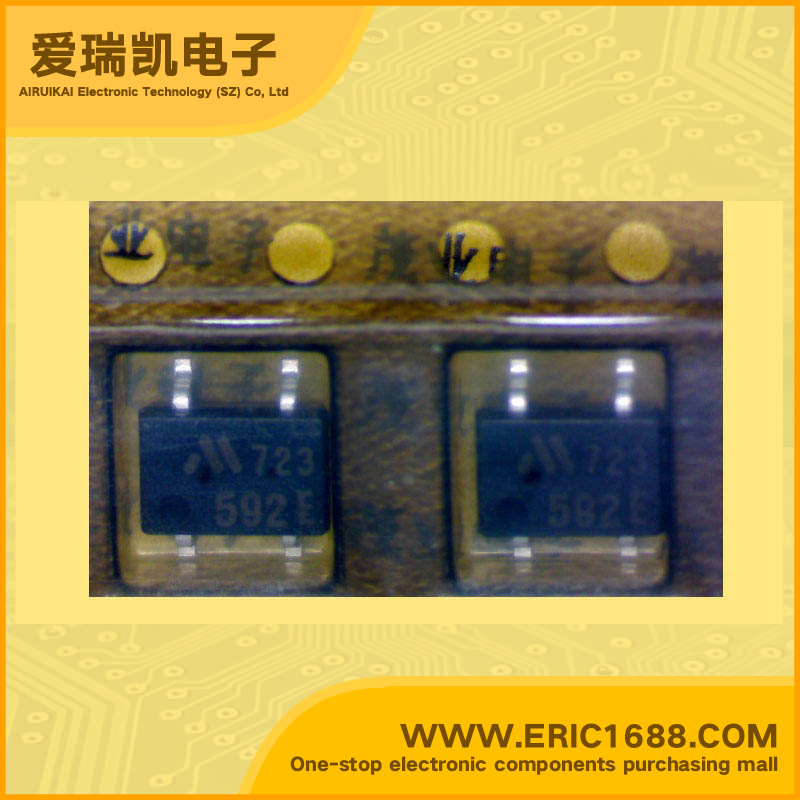

PST592EMT Voltage Supervisor 3.9V MMP-4A marking 592E System Reset IC
| 受检测电压数 Number of Voltages Monitored | 1 |
| 检测电压/复位阈值电压VDET Voltage - Threshold | 3.9V |
| 工作电压VIN Voltage - Supply | -0.3~10V |
| 高/低有效复位 Reset | 低 Active Low |
| 输出类型 Output Type | open collection |
| 看门狗 Watchdog | 无 No |
| 功耗Pd Power Dissipation | 200mW/0.2W |
| Description & Applications | •IC for System Reset •Ultra-low current consumption ICCH=7.5µA typ. ICCL=400µA typ. •Low operating limit voltage 0.65V typ. •Output current high for ON 30mA typ. •Hysteresis voltage provided in detection voltage 50mV typ. •Delay time can set over a wide range using external capacitor and resistor. 10µS~10S |
| 描述与应用 | •系统复位IC •超低电流消耗7.5μA（典型值）= ICCH ICCL=400μA（典型值） •低工作电压的限制0.65V（典型值） •高输出电流ON30毫安典型 •提供滞后电压检测电压50mV的典型 •延迟时间可以设置在很宽的范围内使用外部电阻和电容。 10μS~~10S |
