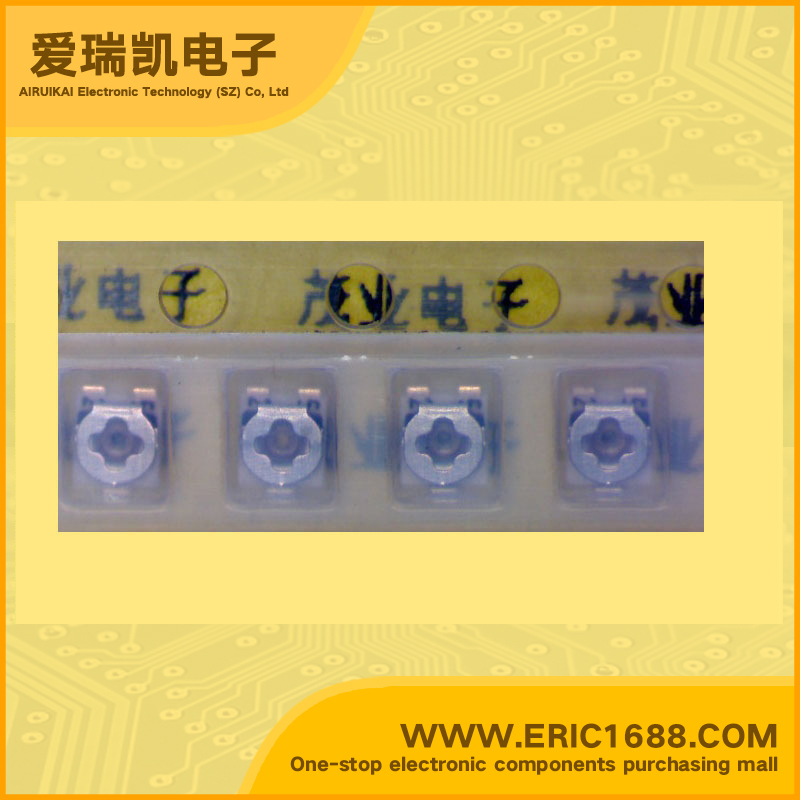

Trimmer Potentiometers PVZ2A501A01R00 500Ω/Ohm 2X2-500R marking 52

Hot selling goods

Product description
电阻值
Resistance
500Ω/Ohm
额定功率
Power
0.05W,1/20W
容差
Tolerance
±30%
温度系数
Temperature Coefficient
±500ppm/°C
圈数
Number of Turns
单圈 Single
调节类型
Adjustment Type
顶部调节 Top Adjustment
端子类型
Termination Style
J引线 J Lead
Description & Applications Trimmer Potentiometers c Features 1. Ultra-small and thin external dimensions of 2.1(W)x2.7(L)x0.85 max. (T)mm. (Top adjustment type: PVZ2A_C04 Series) 2. Ultra-small and thin external dimensions of 2.1(W)x4.8(L)x0.9 max. (T)mm. (Rear adjustment type: PVZ2R_C04 Series) Compact PCB design is possible by smaller adjustment hole (3.0mm dia.) due to short wing length (4.8mm). 3. Au plated termination achieves a high-density PCB mounting. 4. Cross-shaped driver slot allows for in-process automatic adjustment and it provides superior adjustability. Applications 1. Pick-up module 2. LCD 3. Cellular phone 4. PHS 5. Pager 6. DVC 7. Digital camera 8. Portable audio, etc.
描述与应用 微调电位器 C特点 1。超小而薄的外形尺寸为     2.1(宽)×2.7(长)×0.85最大。 (T)毫米。     (顶调整型:PVZ2A_C04系列) 2。超小而薄的外形尺寸为     2.1(W)×4.8(L)X0.9最大。 (T)毫米。     (后调整型:PVZ2R_C04系列)     可以通过较小的紧凑型PCB设计     由于短翼的调节孔(直径3.0mm)长度(4.8mm)已。 3。镀金端子可实现高密度PCB安装。 4。十字型槽,可在进程自动调整并提供优越调节性。  应用 1。接送模块 2。液晶显示 3。手机 4。小灵通 5。呼叫器 6。 DVC 7。数码相机 8。便携式音频,等等。
