R1112N211B LDO Voltage Regulator 2.1V 280mV/0.28V SOT-153/SOT23-5 marking FM Short-Circuit Protection Over-Temperature Protection

Model：R1112N211B

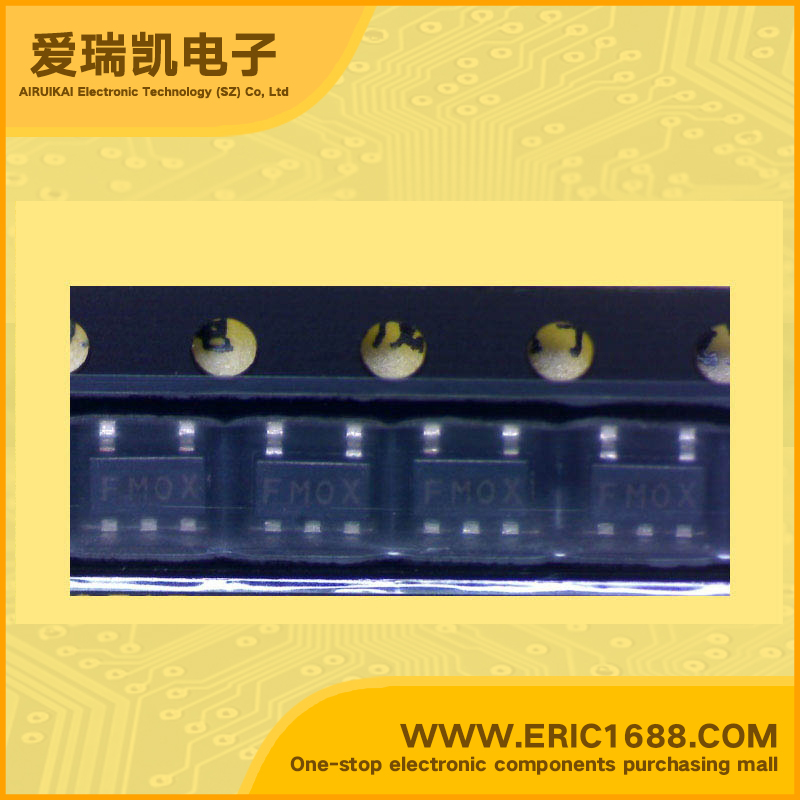

Mark / screen / code / typing：FM
Manufacturer：
Date Code：04+
Package：SOT-153/SOT23-5
Standard Package：3000
Min Order：10

Hot selling goods

Product description

电路数量 Number of Regulators	1
输入电压VIN Voltage - Input	7V
输出电压VOUT Voltage - Output	2.1V
输出电流Io Current - Output	100mA/0.1A
最大压降VDO Voltage - Dropout	280mV/0.28V
带使能脚EN/CE(ON/OFF功能) With Enable Pin	无 No
最大耗散功率Pd Power dissipation	250mW/0.25W
Description & Applications	LOW NOISE 150mA LDO REGULATOR;• Ultra-Low Supply CurrentTYP. 100µA • Standby ModeTYP. 0.1µA • Low Dropout Voltage TYP. 0.19V(IOUT=100mA)
描述与应用	低噪声150MA LDO稳压器;•超低电源CurrentTYP的。100μA •待机ModeTYP。 0.1μA •低压差TYP。 0.19V（IOUT=百毫安）

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
R1112N241B-TR LDO Voltage Regulator 2.4V 200mV/0.2V SOT-153/SOT23-5 marking FQ Short-Circuit Protection Over-Temperature Protection	R1112N241B-TR Mark：FQ Package：SOT-153/SOT23-5	-	Batch number：02+	2600 Min Order:10
R1112N381B LDO Voltage Regulator 3.8V 190mV/0.19V SOT-153/SOT23-5 marking GUO Short-Circuit Protection Over-Temperature Protection	R1112N381B Mark：GUO Package：SOT-153/SOT23-5	-	Batch number：05+	650 Min Order:10
R1112N431B LDO Voltage Regulator 4.3V 190mV/0.19V SOT-153/SOT23-5 marking HPO Short-Circuit Protection Over-Temperature Protection	R1112N431B Mark：HPO Package：SOT-153/SOT23-5	-	Batch number：05+	800 Min Order:10
R1113Z281B-TR-FD LDO Voltage Regulator 2.8V 230mV/0.23V WL-CSP4-P1 marking F Short-Circuit Protection Over-Temperature Protection	R1113Z281B-TR-FD Mark：F Package：WL-CSP4-P1	-	Batch number：04+	4000 Min Order:10
R1114D181D LDO Voltage Regulator 1.8V 320mV/0.32V SOT-563/SON1612-6 marking F18 Short-Circuit Protection Over-Temperature Protection	R1114D181D Mark：F18 Package：SOT-563/SON1612-6	-	Batch number：05+	5000 Min Order:10
R1114D261D LDO Voltage Regulator 2.6V 280mV/0.28V SOT-563/SON1612-6 marking F26 Short-Circuit Protection Over-Temperature Protection	R1114D261D Mark：F26 Package：SOT-563/SON1612-6	-	Batch number：07+NOPB25RM+4K	124000 Min Order:10
R1114D271D LDO Voltage Regulator 2.7V 280mV/0.28V SOT-363/SON1612-6/SC70-6 marking F27 Short-Circuit Protection Over-Temperature Protection	R1114D271D Mark：F27 Package：SOT-363/SON1612-6/SC70-6	-	Batch number：06NOPB 06+ROHS4KM	4100 Min Order:10
