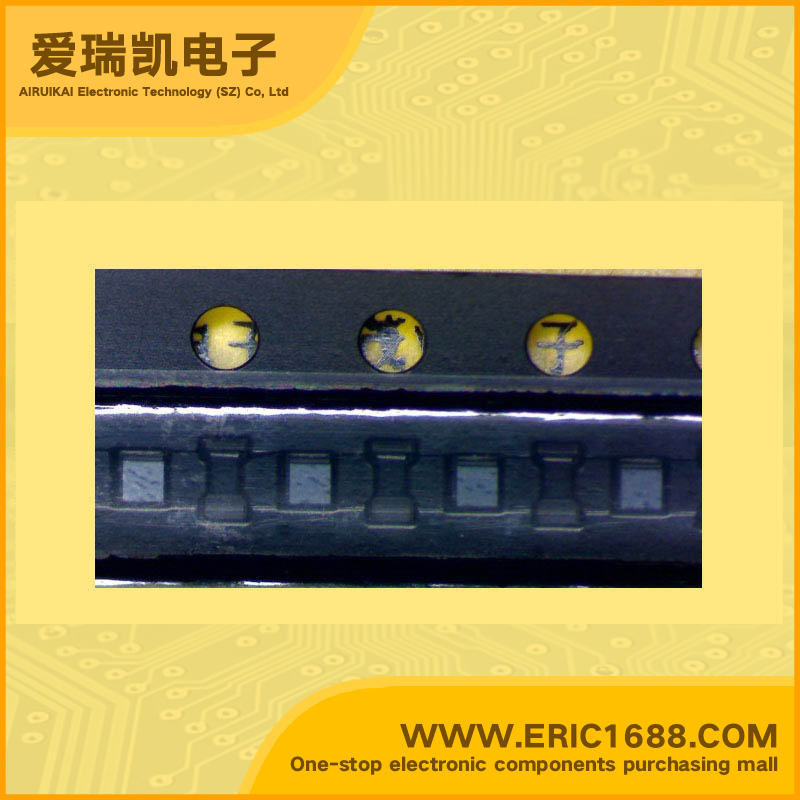

R1115Z151D-TR-FD LDO Voltage Regulator 1.5V 380mV/0.38V WL-CSP4-P4 marking 5 Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
6.5V
输出电压VOUT
Voltage - Output
1.5V
输出电流Io
Current - Output
150mA/0.15A
最大压降VDO
Voltage - Dropout
380mV/0.38V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
无 No
最大耗散功率Pd
Power dissipation
Description & ApplicationsLOW NOISE 150mA WL-CSP LDO ;•Low Supply Current 75µA •Standby Mode 0.1µA •Low Dropout Voltage 0.22V (IOUT=150mA 3.0V Output type) • High Ripple Rejection Typ. 70dB (f=1kHz 3.0V Output type) 60dB (f=10kHz) • Low Temperature-Drift Coefficient of Output Voltage Typ. ±100ppm/°C • Excellent Line Regulation Typ. 0.02%/V • High Output Voltage Accuracy ±2.0% • Output Voltage Stepwise setting with a step of 0.1V in the range of 1.5V to 4.0V is possible • Built-in Fold Back Protection Circuit 40mA (Current at short mode) • Ceramic capacitors are recommended to be used with this IC ... CIN=COUT=1µF (VOUT<2.5V) CIN=1µF, COUT=0.47µF (VOUT>= 2.5V)
描述与应用150MA WL-CSP低噪声LDO;•低电源电流75μA •待机模式0.1μA •低压差电压0.22V(IOUT=3.0V150毫安输出型) •高纹波抑制比典型。 70分贝(F =1kHz的3.0V输出类型)60分贝(F =10kHz时) •低温度漂移系数的输出电压典型值。温度系数±100ppm/°C •卓越的线路调整典型。 0.02%/ V •高输出电压精度±2.0% •每步0.1V的输出电压逐步设置   1.5V到4.0V的范围内是可能的 •内置在折返保护电路40毫安(目前在很短的模式) •陶瓷电容器推荐使用这个IC... CIN= COUT=1μF(VOUT<2.5V)     CIN=1μF,COUT=0.47μF(VOUT=2.5V)
