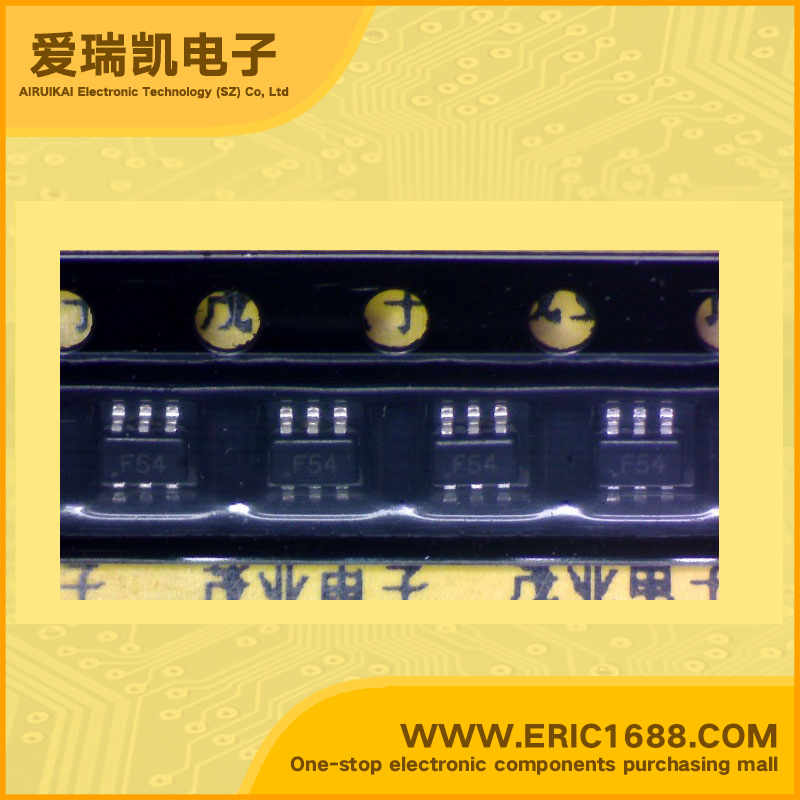

RCLAMP0504F.TCT TVS/ESD 5V 6A SOT-363/SC70-6 marking F54

Hot selling goods

Product description
极性
Polarization
双向 Bidirectional
反向关断电压/工作电压VRWM
Reverse Standoff Voltage
5V
反向击穿电压VBR
Breakdown Voltage
6V
峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation
150W
峰值脉冲电流IPPm
Peak Forward Surge Current
6A
额定耗散功率Pd
Power dissipation
Description & ApplicationsFEATURES •Low Capacitance TVS Array •Transient protection for high-speed data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) •Array of surge rated diodes with internal TVS Diode •Small package (2.4 x 2.2mm) saves board space •Protects up to four I/O lines & power line •Low capacitance (<3pF) for high-speed interfaces •No insertion loss to •Low leakage current and clamping voltage •Low operating voltage: 5.0V •Solid-state silicon-avalanche technology
描述与应用特性 •低电容TVS阵列 •瞬态保护高速数据线 IEC61000-4-2(ESD)±15kV(空气),±8kV(接触) IEC61000-4-4(EFT)40A(5/50ns) •额定浪涌阵列内部TVS二极管二极管 •小包装(2.4×2.2毫米)节省电路板空间 •保护四个I / O线和电源线 •高速接口低电容(<3PF) •没有插入损耗 •低漏电流和钳位电压 •低工作电压:5.0V •固态硅雪崩科技
