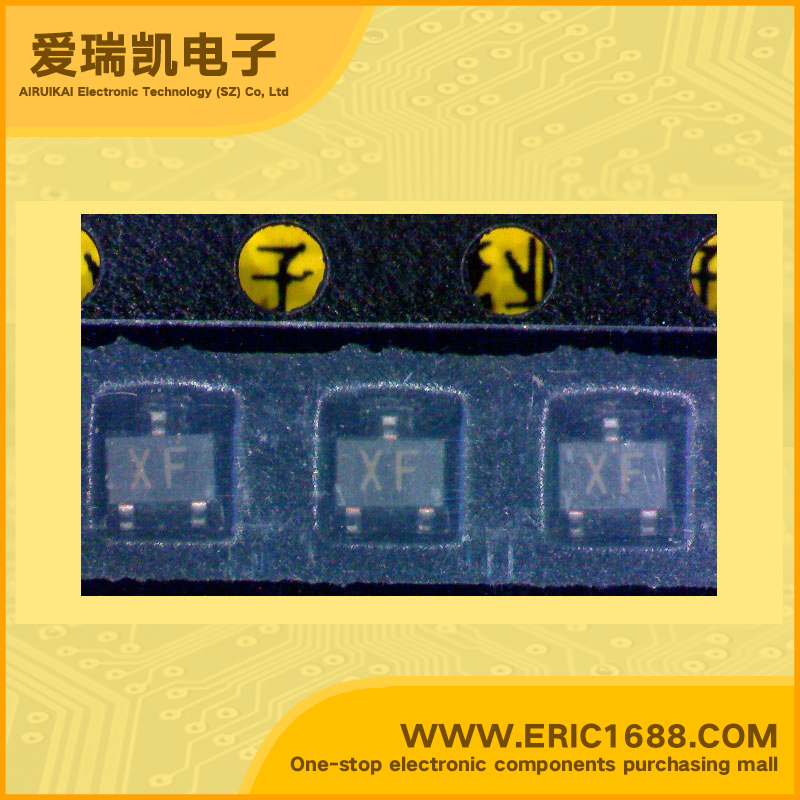

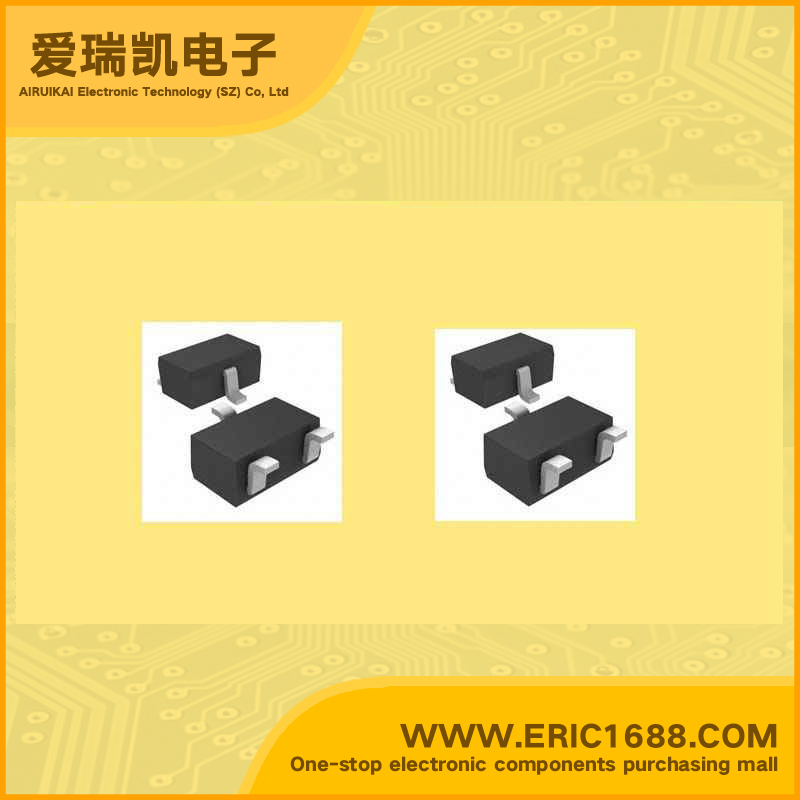

RN1306 NPN Bipolar Digital Transistor (BRT) 50V 100mA/0.1A 4.7k 47k SOT-323/SC-70/USM marking XF switch inverting circuit interface circuit and driver circuit

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)50V
集电极连续输出电流IC Collector Current(IC)100mA/0.1A
基极输入电阻R1 Input Resistance(R1)4.7KΩ/Ohm
基极-发射极输入电阻R2 Base-Emitter Resistance(R2)47KΩ/Ohm
电阻比(R1/R2) Resistance Ratio0.1
直流电流增益hFE DC Current Gain(hFE)80
截止频率fT Transtion Frequency(fT)250MHz
耗散功率Pc Power Dissipation0.1W/100mW
Description & ApplicationsSwitching, Inverter Circuit, Interface Circuit and Driver Circuit Applications With built-in biasresistors Simplify circuit design Reduce a quantity of parts and manufacturing process Complementary to RN2301 to RN2306
描述与应用开关,逆变电路,接口电路 和驱动器电路应用 借助内置的偏置电阻。 简化电路设计 数量减少了零件和制造工艺 互补RN2301 RN2306
