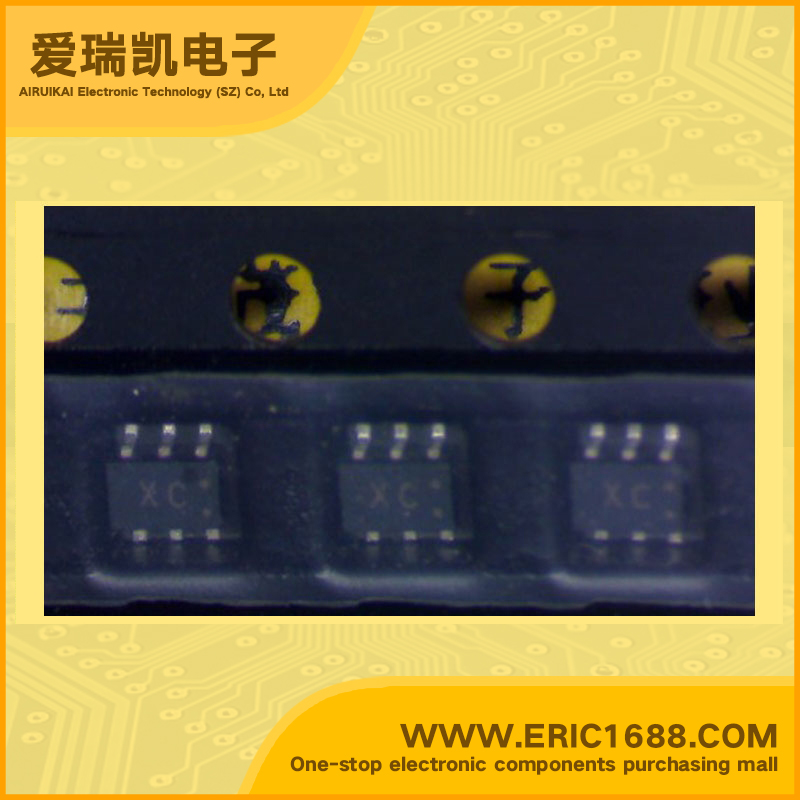

RN1903 NPN+NPN Complex Bipolar Digital Transistor 50V 100mA 70 200mW/0.2W SOT-363/US6/SC70-6 marking XC switching inverting interface driver circuit

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)50V
集电极连续输出电流IC Collector Current(IC)100mA
Q1基极输入电阻R1 Input Resistance(R1)22KΩ/Ohm
Q1基极-发射极输入电阻R2 Base-Emitter Resistance(R2)22KΩ/Ohm
Q1电阻比(R1/R2) Q1 Resistance Ratio1
Q2基极输入电阻R1 Input Resistance(R1)22KΩ/Ohm
Q2基极-发射极输入电阻R2 Base-Emitter Resistance(R2)22KΩ/Ohm
Q2电阻比(R1/R2) Q2 Resistance Ratio1
直流电流增益hFE DC Current Gain(hFE)70
截止频率fT Transtion Frequency(fT)250MHz
耗散功率Pc Power Dissipation200mW/0.2W
Description & ApplicationsFeatures • TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT Process) (Bias Resistor Built-in Transistor) • Including two devices in US6 (ultra super mini type with 6 leads) • With built-in bias resistors • Simplify circuit design • Reduce a quantity of parts and manufacturing process • Complementary to RN2901 to RN2906 APPLICATIONS • Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications
描述与应用特点 •东芝晶体管的硅NPN外延式(PCT的进程)(偏置电阻内置晶体管) •包括两个设备US6(超超级迷你型6引线) •借助内置的偏置电阻 •简化电路设计 •减少了部件数量和制造工艺 •互补RN2901 RN2906 应用 •开关,逆变电路,接口电路和驱动器电路应用
