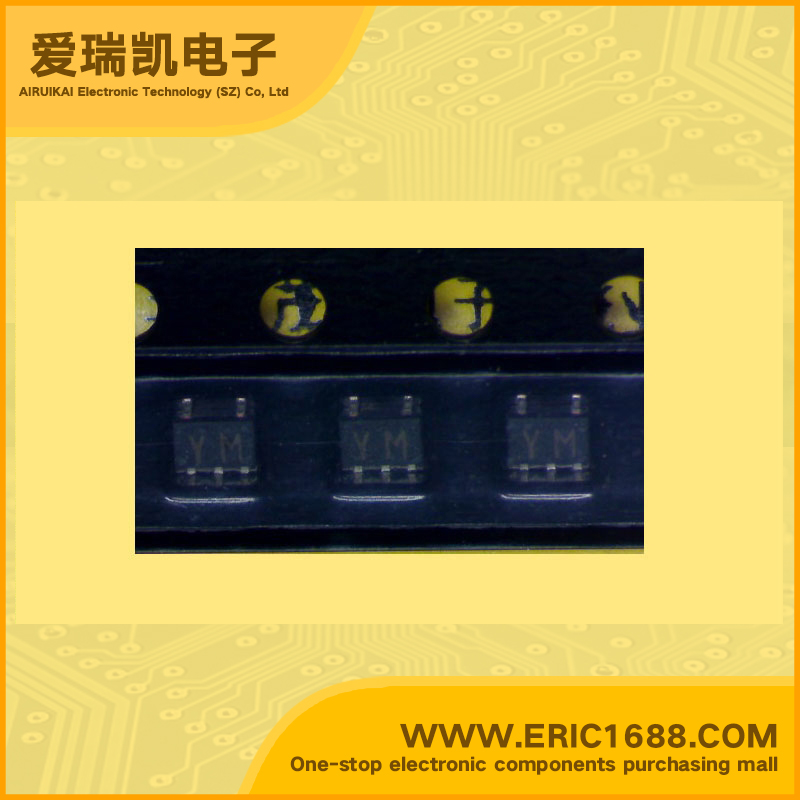

RN2711 PNP+PNP Complex Bipolar Digital Transistor -50V -100mA HEF=120~400 R1=10KΩ 200mW/0.2W SOT-353/usv/SC70-5 marking YM switching inverting interface driver circuit

Price (excluding freight):
Batches(PCS):
$0.054
≤99
$0.049
≤499
$0.040
≤999
$0.035
≤2999
$0.032
FCL

Hot selling goods

Product description

V(BR) CBO

Collector-Base Voltage

 -50V

V(BR) CEO

Collector-Emitter Voltage

 -50V
Collector Current(IC)  -100MA/-0.1A
 Input Resistance(R1) 10 KΩ
Base-Emitter Resistance(R2)
Base-Emitter Input Resistance Ratio (R1/R2)
DC Current Gain(hFE)  120~400
Transtion Frequency(fT)  200MHZ
Power Dissipation (Pd)  0.2W
Description & Applications  Switching, Inverter Circuit, Interface Circuit
And Driver Circuit Applications
Including two devices in USV (ultra super mini type with 5 leads)
With built-in bias resistors
Simplify circuit design
Reduce a quantity of parts and manufacturing process
