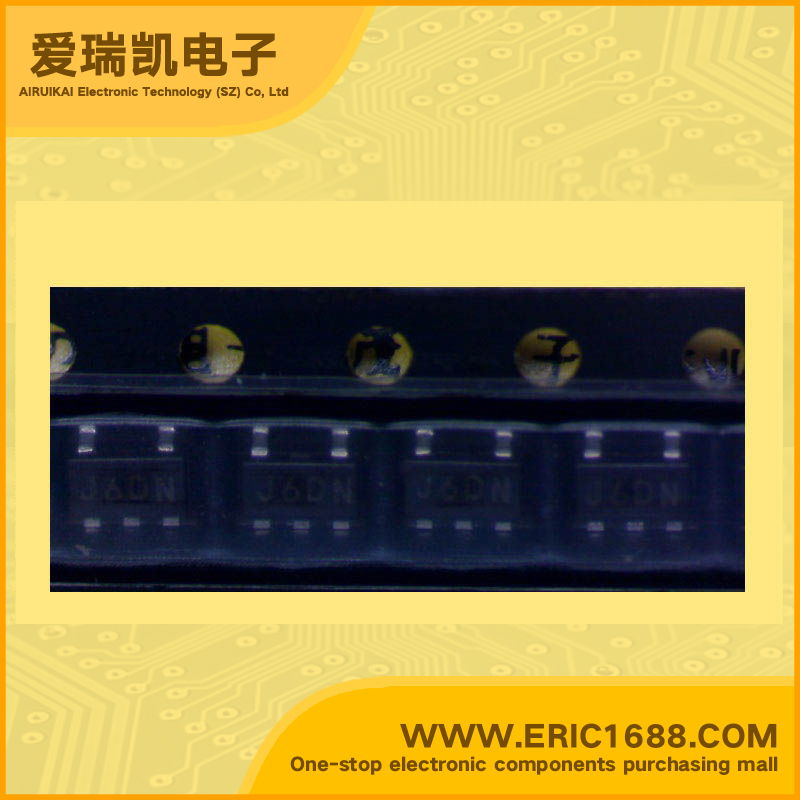

RN5RG26AA-TR LDO Voltage Regulator 2.6V 100mV/0.1V With Enable Pin SOT-153/SOT23-5 marking J6 Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
12V
输出电压VOUT
Voltage - Output
2.6V
输出电流Io
Current - Output
100mA/0.1A
最大压降VDO
Voltage - Dropout
100mV/0.1V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
150mW/0.15W
Description & ApplicationsVOLTAGE REGULATOR WITH EXTERNAL POWER TRANSISTOR ;•Ultra-Low Supply Current TYP. 50µA • Standby Mode TYP. 0.2µA • Ultra-Low Dropout Voltage TYP. 0.1V (IOUT=100mA : dependent on External Tr.) • Low Temperature-Drift Coefficient of Output Voltage TYP. ±100 ppm/˚C • Excellent Line Regulation TYP. 0.1%/V • Output Voltage Stepwise setting with a step of 0.1V in the range of 2.0V to 6.0V is possible (refer to Selection Guide). • High Accuracy Output Voltage ±2.5% • Power source for battery-powered equipment. • Power source for cameras, VCRs, camcorders, hand-held audio instruments, and hand-held communication equipment. • Power source for domestic appliances.
描述与应用稳压器与 外部功率晶体管;•超低电源电流的典型值。 50μA •待机模式TYP。 0.2μA •超低压差电压TYP。 0.1V(IOUT=100MA:依赖于外部TR)。 •低输出电压的温度漂移 TYP。 ±100 PPM /˚C •卓越的线路调整TYP。 0.1%/ V •输出电压范围为2.0V至6.0V0.1V的步骤逐步设置 (参见选型指南)。 •高输出电压精度为±2.5% •电池供电设备的电源。 •电源,摄像机,录像机,摄像机,手持音频设备和手持式通信 的设备。 •家用电器的电源。
