RSR015P03 MOSFET P-Channel -30V -1.5A 0.17ohm SOT-23 marking SM low on-resistance 4V drive

Model：RSR015P03

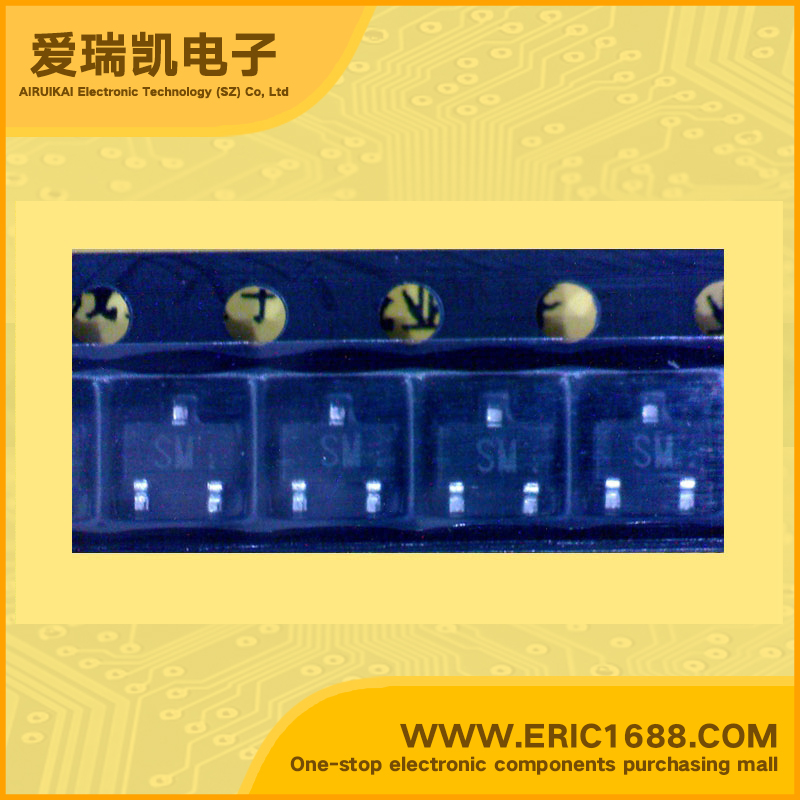

Mark / screen / code / typing：SM
Manufacturer：
Date Code：05NOPB 04+1.2KROHS
Package：SOT-23/SC-59
Standard Package：3000
Min Order：10

Hot selling goods

Product description

最大源漏极电压Vds Drain-Source Voltage	-30V
最大栅源极电压Vgs(±) Gate-Source Voltage	20V
最大漏极电流Id Drain Current	-1.5A
源漏极导通电阻Rds Drain-Source On-State Resistance	0.17Ω @-1.5A,-10V
开启电压Vgs（th） Gate-Source Threshold Voltage	-1.0--2.5V
耗散功率Pd Power Dissipation	1W
Description & Applications	Features Low On-resistance Space saving small surface mount package (TSMT3) 4V drive
描述与应用	低导通电阻节省空间的小型表面贴装封装（TSMT3） 4V驱动器
