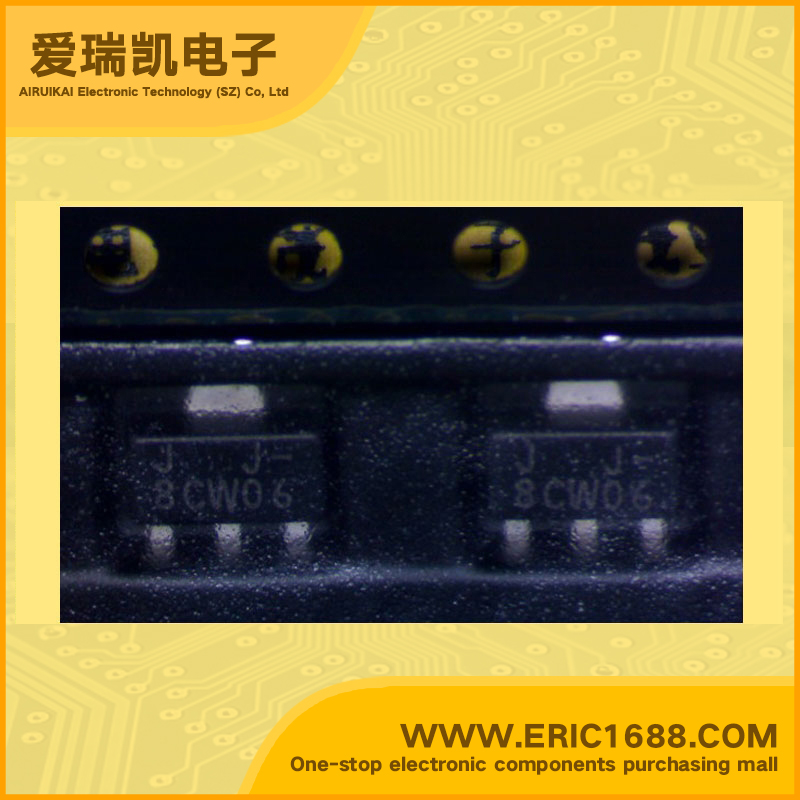

RT9166-15PX LDO Voltage Regulator 1.5V 230mV/0.23V SOT-89 marking 8CW06 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 6.5V |
| 输出电压VOUT Voltage - Output | 1.5V |
| 输出电流Io Current - Output | 300mA/0.3A |
| 最大压降VDO Voltage - Dropout | 230mV/0.23V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | 571mW/0.571W |
| Description & Applications | 300/600mA, Ultra-Fast Transient Response LDO Regulator ;•Low Quiescent Current (Typically 220uA) •Guaranteed 300/600mA Output Current •Low Dropout Voltage : 230/580mV at 300/600mA •Wide Operating Voltage Ranges : 3V to 5.5V •Ultra-Fast Transient Response •Tight Load and Line Regulation •Current Limiting Protection •Thermal Shutdown Protection •Only Low-ESR Ceramic Capacitor Required for •Stability •Custom Voltage Available • CD/DVD-ROM, CD/RW • Wireless LAN Card/Keyboard/Mouse • Battery-Powered Equipment • XDSL Router •PCMCIA Card |
| 描述与应用 | 300/600mA，超快速瞬态响应LDO稳压器;•低静态电流（通常为220ua） •保证300/600mA输出电流 •低压差：230/580mV300/600mA •宽工作电压范围：3V至5.5V •超快速瞬态响应 •严格的负载和线路调整 •电流限制保护 •热关断保护 •低ESR陶瓷电容器所需 •稳定性 •定制电压可用 •CD / DVD-ROM，CD/ RW •无线网卡/键盘/鼠标 •电池供电设备 •XDSL路由器 •PCMCIA卡 |
